Analyze Seasonal Patterns with Nightingale Rose Charts

You are here:

  1. Salesforce Help
  2. Docs
  3. Tableau Next

Analyze Seasonal Patterns with Nightingale Rose Charts

Compare values across equal, cyclical time periods to highlight differences in magnitude with a Tableau Next Nightingale rose chart. Include additional dimensions to compare patterns across groups while preserving the cyclical sequence. For example, visualize monthly sales by region to identify seasonal peaks and compare sales patterns across regions throughout the year.

Required Editions

View supported editions.
User Permissions Needed
To create Tableau Next visualizations: Tableau Unmetered Platform Analyst or Tableau Next Platform Analyst permission set
  1. From the Show Me pane in your visualization, click the Nightingale Rose chart thumbnail in the Show Me pane thumbnail. The layout changes to Nightingale Rose, and the pane shows the required fields and supported field encodings for the chart type.
  2. From the Data pane in your visualization, drag the dimension field you want to analyze onto Slices. For the chart in the example, select Order Date and set the date part to Month.
  3. Drag a continuous measure field, such as Sum of Sales, onto Rings.
  4. To compare patterns across groups, such as regions, drag Region onto Color.
  5. You can further customize the visualization with labels or tooltips to make the chart easier to interpret.
  6. Save your visualization.

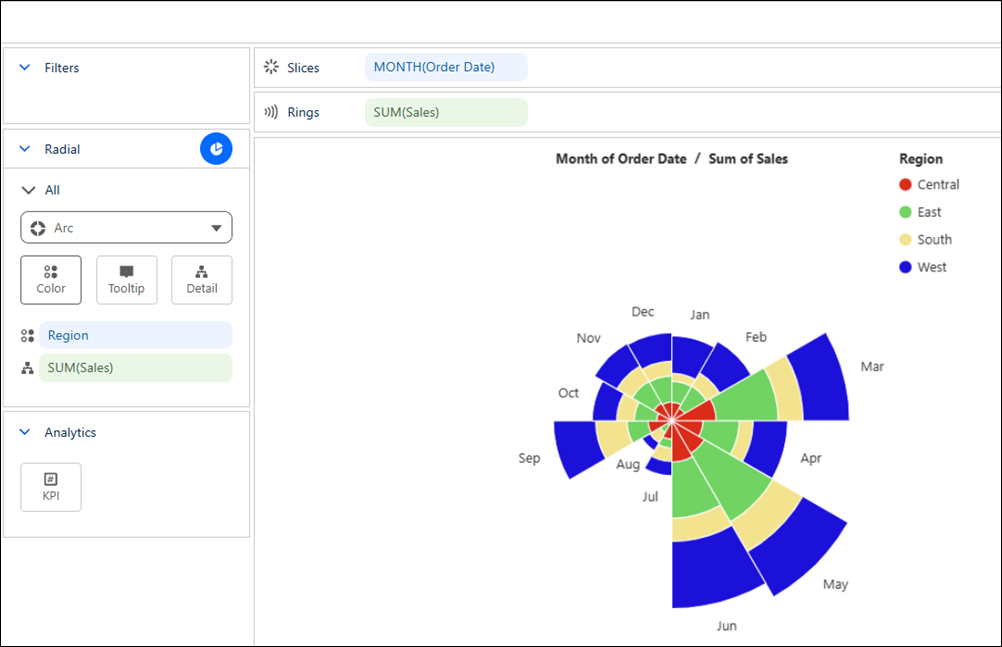

Nightingale rose chart comparing monthly sales by region.
