            Create a Point Map to Compare Values Across Locations

            You are here:

            1. Salesforce Help
            2. Docs
            3. Tableau Next

            Create a Point Map to Compare Values Across Locations

            In Tableau Next, you can visualize how values vary across geographic locations using latitude and longitude data with point maps. Identify trends based on geography, such as areas with higher and lower business activity. Use encodings like size and color to emphasize differences across locations and make comparisons clearer. For example, visualize how sales vary across locations to assess market distribution. Then color locations based on binned sales ranges to compare markets more easily.

            Required Editions

            View supported editions.
            User Permissions Needed
            To create Tableau Next visualizations: Tableau Unmetered Platform Analyst or Tableau Next Platform Analyst permission set

            To enable Maps in Tableau Next, from Setup, enter Tableau Next Features in the Quick Find box and select it. Under Maps, enable Use Maps in Tableau Next.

            1. From the Layout menu in the widget toolbar, select Map (1).
            2. Click + Add Location (2).
            3. Enter a location name. Then select the latitude and longitude fields from your data source (3).

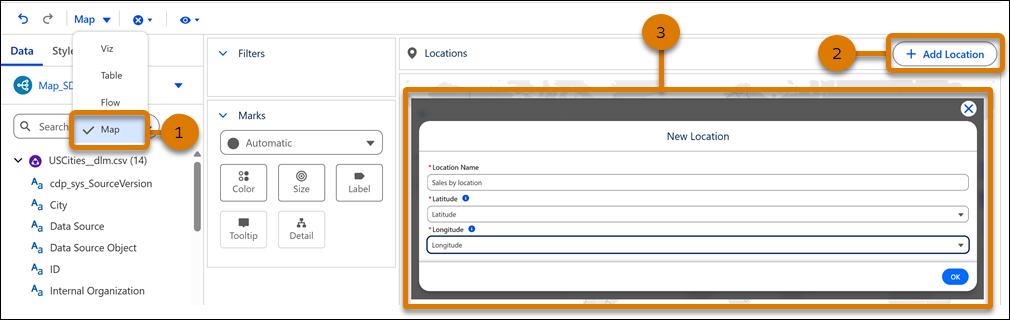

              Tableau Next map configuration settings
            4. Click OK.
            5. Optionally, use size encoding to emphasize differences in values across locations. In this example, drag Sum of Sales onto Size.
            6. Based on the selected sizing mode, set the minimum and maximum sizes using percentages or pixels.
            7. Optionally, apply color encoding to make comparisons across locations clearer. In this example, drag the sales bin onto Color.
            8. Apply your changes.

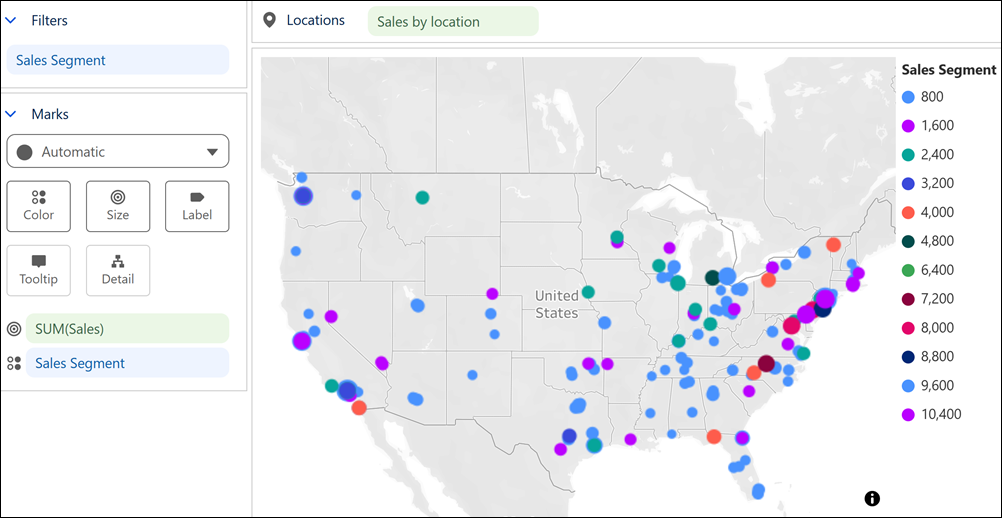

            Point map that shows sum of sales by bin value

            Use the mouse scroll wheel to zoom in and out of the map. Hold the Shift key and drag to pan across the map.
