Create a Context Definition for Health Cloud Objects

Use Context Definition nodes and attributes to create a context definition for the Health Cloud objects and fields. Then, map the nodes with the corresponding objects, and map the attributes with the corresponding fields.

Required Editions

Available in: Lightning Experience

Available in: Enterprise and Unlimited Editions for clouds that have Context Service enabled

User Permissions Needed
To load, view, edit, and delete context definitions:	Context Service Admin

From Setup, in the Quick Find box, enter Context Service, and then select Context Definitions.
Click New.
Add these details.
1. Enter Get_MemberPlan_Details as the name.
2. In Effective From, enter [Current Date and Time].
3. In Time to Live, enter 10 as the duration, and select Minute as the unit.
4. Click Next.

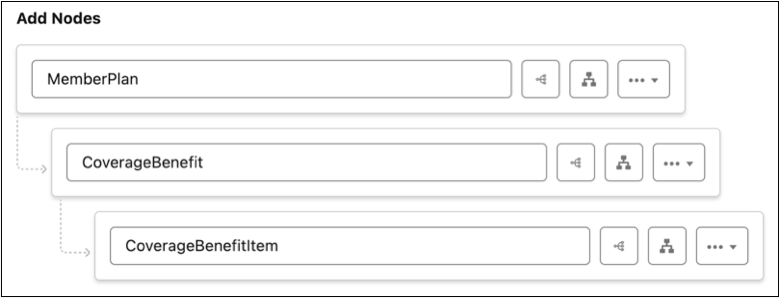

Configure a structure to define nodes and the relationship between the nodes.
1. In Add Node, enter MemberPlan.
2. Click beside the MemberPlan node to add a child node. Enter CoverageBenefit.
3. Click beside the CoverageBenefit node to add a child node. Enter CoverageBenefitItem.
Click Next.

Add Attributes

Click Add Attributes, and enter these attribute details for each node.

Node: MemberPlan

Attribute Name	Type	Data Type
Status	INPUT OUTPUT	STRING
EffectiveFrom	INPUT OUTPUT	DATE
EffectiveTo	INPUT OUTPUT	DATE
isActive	INPUT OUTPUT	BOOLEAN
PlanId	INPUT	STRING
Name	INPUT	STRING
MemberNumber	INPUT	STRING

Child Node: CoverageBenefit

Attribute Name	Type	Data Type
IsActive	INPUT OUTPUT	BOOLEAN
CoverageType	INPUT OUTPUT	STRING
BenefitPeriodEndDate	INPUT OUTPUT	DATE
BenefitPeriodStartDate	INPUT OUTPUT	DATE
Name	INPUT OUTPUT	STRING
MemberPlanId	INPUT OUTPUT	STRING
MemberId	INPUT OUTPUT	STRING

Child Node: CoverageBenefitItem

Attribute Name	Type	Data Type
ServiceTypeCode	INPUT OUTPUT	STRING
Name	INPUT OUTPUT	STRING
ServiceType	INPUT OUTPUT	STRING
IsPreauthorizationRequired	INPUT OUTPUT	BOOLEAN
Cost	INPUT	STRING

Click Next.

Add Tags

Click Add Tags beside the MemberPlan node. Enter MemberPlan, and click Done.

Similarly, click Add Tags beside each of these attributes and enter the corresponding tag names. Click Done after you add each tag.

Node: MemberPlan

Attribute Name	Tag name
Status	PlanStatus
EffectiveFrom	EffectiveDateFrom
EffectiveTo	EffectiveDateTo
isActive	IsMemberPlanActive
PlanId	PlanId
Name	MemberName
MemberNumber	MemberNumber

Child Node: CoverageBenefit

Attribute Name	Tag name
CoverageBenefit	CoverageBenefit
IsActive	IsCoverageBenefitActive
CoverageType	CoverageType
BenefitPeriodEndDate	BenefitPeriodEndDate
BenefitPeriodStartDate	BenefitPeriodStartDate
Name	CoverageBenefitName
MemberPlanId	MemberPlanId
MemberId	MemberId
ParentReference	Plan

Child Node: CoverageBenefitItem

Attribute Name	Tag name
CoverageBenefitItem	CoverageBenefitItem
ParentReference	CB
ServiceTypeCode	ServiceTypeCode
Name	CoverageBenefitItemName
ServiceType	ServiceType
IsPreauthorizationRequired	IsPreauthorizationRequired
Cost	Cost

Save your changes.

Add Context Mapping

Click the Get_MemberPlan_Details context definition to open it.
Click the Map Data tab.
Click Add Mapping.
Enter Map1 as the name of the mapping.
Select Mark as Default.
Click Next.

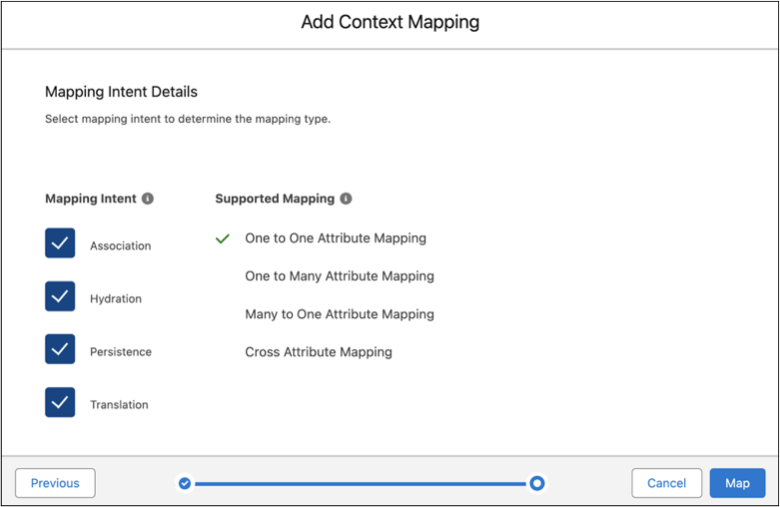

In Mapping Intent, select Association, Hydration, Persistence, and Translation.
Click Map.
On the Context Mapping builder page, click Select Data Source.

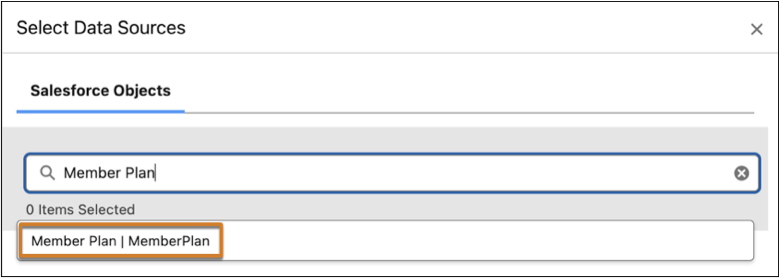

In the Select an object search field, enter Member Plan, and select the Member Plan object from the dropdown.

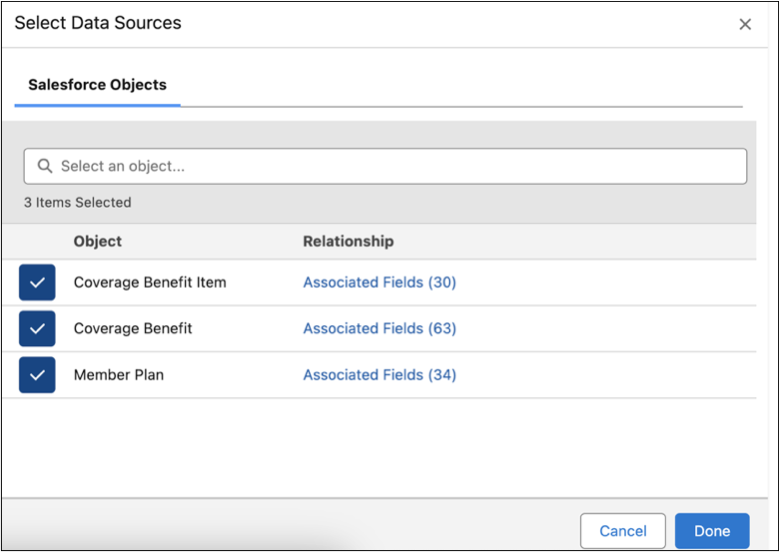

Similarly, find and select the Coverage Benefit and Coverage Benefit Item objects.
To select each object and add them to the map, click .
Click Done.

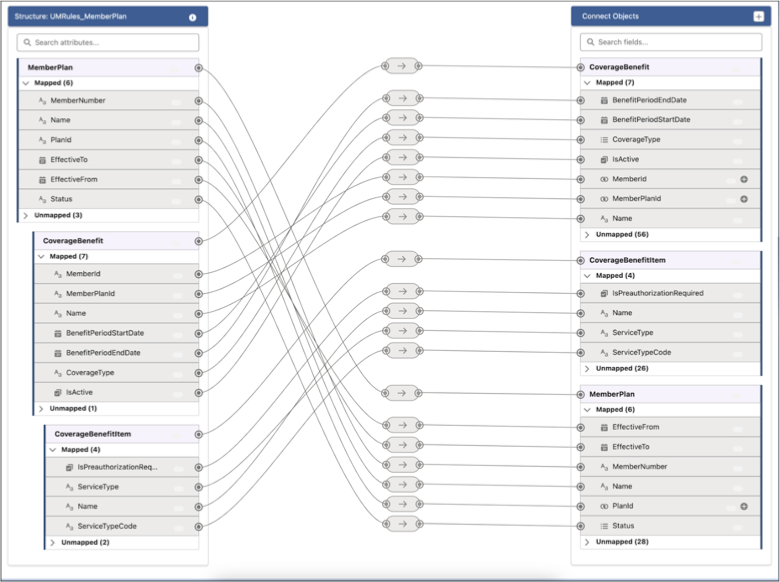

In the Structure: Get_MemberPlan_Details section, click beside the MemberPlan node. Then, click beside the MemberPlan object under the Connect Objects section and connect the node and object.

Note Map the Nodes first before you map the attributes under each node.
Click beside Unmapped under MemberPlan in both the Structure and Connect Objects sections to show all the attributes and fields, respectively.
Click beside the MemberNumber attribute in the Structure section, and then click beside the MemberNumber field in the Connect Objects section to connect them.
Similarly, connect all the nodes and attributes in the Structure section with the corresponding objects and fields in the Connect Objects section, respectively.
Save your changes.
Open the Get_MemberPlan_Details context definition.
Click the Map Data tab.

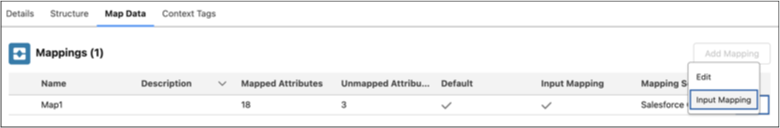

Click the dropdown for the Map1 mapping record, and select Input Mapping.
In the MemberPlan node, for isActive, enter isActive in the Input Mapping field.
Save your changes.

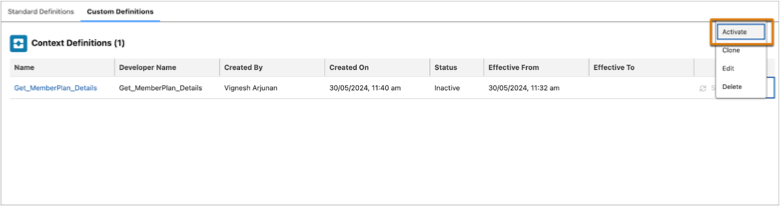

On the Custom Definitions tab, click the dropdown for the Get_MemberPlan_Details context definition item, and click Activate.
