            Additional Lookup or Other Line Item (OLI) Fields in Additional Settings

            You are here:

            1. Salesforce Help
            2. Docs
            3. Communications, Media, and Energy & Utilities Managed Package

            Additional Lookup or Other Line Item (OLI) Fields in Additional Settings

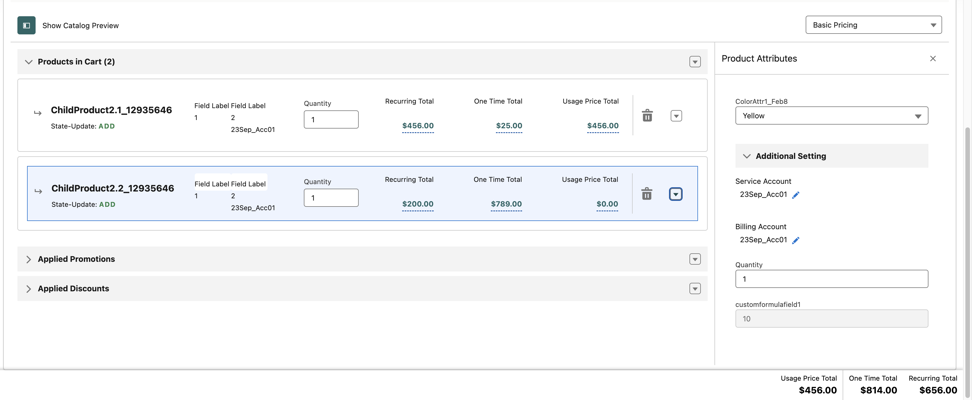

            This section explains how to configure specific line item and lookup fields for display in the Additional Settings panel of the CPQ interface using the additionalCustomJson configuration.

            Adding Line Item Fields

            To display specific line item fields in the Additional Settings panel, define them in theadditionalCustomJson configuration using the following format.

            {"additionalFields": "FieldAPIName1,FieldAPIName2"}

            Configuration Details: A comma-separated list of API names for each field to display.

            Requirements:

            • Field must already be part of the getCartsItems API response.
            • Fields must have their isHidden attribute set to false.
            • Editable fields must have the editable attribute set to true.JSON structure example for defining line item fields in the Additional Settings panel
            Example
            Example JSON Configuration
            {
  "additionalFields": "ProductCode,Description"
}

            Adding Type and Formatter Fields

            These new parameters can help you provide customized inputs.

            "additionalFields": [

  {

   "field": "vlocity_cpq9__EffectiveOneTimeTotal__c",

   "type": "number",

   "formatter": "currency"

  },

  {

   "field": "vlocity_cpq9__RecurringManualDiscount__c",

   "type": "number",

   "formatter": "percent"

  },

  {

   "field": "vlocity_cpq9__CatalogItemReferenceDateTime__c",

   "type": "datetime"

  }

 ]

            Adding Lookup Fields

            Lookup fields reference related records. To display lookup fields in the Additional Settingspanel, define them in the lookupFieldssection of the additionalCustomJson.

            {
  "lookupFields": [
    {
      "fieldName": "vlocity_cmt__ServiceAccountId__r",
      "hidden": false
    },
    {
      "fieldName": "vlocity_cmt__BillingAccountId__r",
      "hidden": false
    }
  ]
}

            Configuration Details:

            • API name of the lookup field, typically ending in __r.
            • Set to false to make the field visible in the Additional Settings panel.

            Requirements:

            • Lookup fields must be part of the getCartsItems API response.
            • Lookup fields must follow a naming convention ending in __r, signifying their relational structure.
            Example
            Example JSON Configuration
            {
  "lookupFields": [
    {
      "fieldName": "vlocity_cmt__ServiceAccountId__r",
      "hidden": false
    },
    {
      "fieldName": "vlocity_cmt__BillingAccountId__r",
      "hidden": false
    }
  ]
}

            Adding Decimal Precision

            You can choose the maximumFractionDigits between 0 to 5 according to your preference in your additionalCustomJson script. Here is the format for the JSON configuration:


{  "decimalPrecision": {   "maximumFractionDigits": "3"  } }
