Example: Referencing Other KPIs of the Same Granularity

Calculating a KPI When Referencing Another KPI

Here are two KPIs:

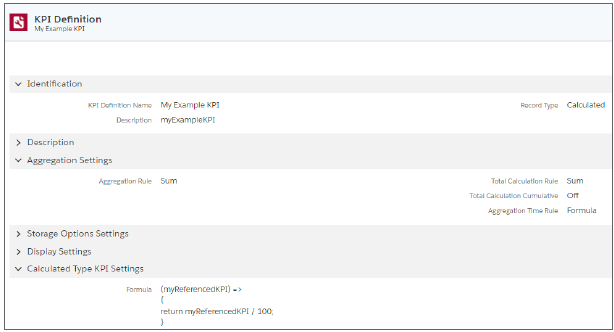

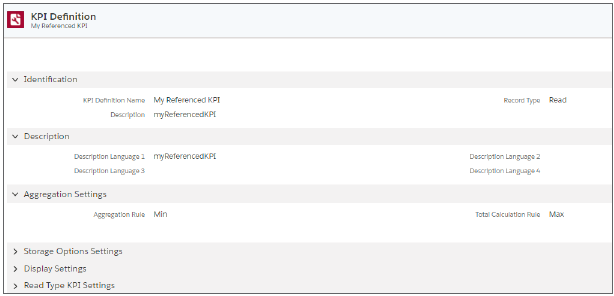

My Referenced KPI is a read KPI with a min aggregation rule and a max total calculation rule. The My Example KPI is the main KPI and is calculated by dividing My Referenced KPI by 100, as defined in the formula field. The table shows sample data for My Example KPI and the expected calculation results for My Referenced KPI.

KPI	Aggregation Level	Total	Week 1	Week 2	Week 3
My Referenced	Promotion	200	100	0	200
My Referenced	Product 1	400	100	0	400
My Referenced	Product 2	200	Null	50	200
My Example	Promotion	7.5	1	0.5	6
My Example	Product 1	5	1	0	4
My Example	Product 2	2.5	0	0.5	2

The calculation occurs in this order.

• Read the values of My Referenced KPI at the lowest level of granularity. For this example, it’s the Product 1 and Product 2 level.
• For calculating the value of My Example KPI, execute the formula at the lowest granularity for each period.
• Calculate total values of My Example KPI based of these rules:
  • Product total based on the Total Calculation rule
  • Period total based on the Aggregation rule
  • Promotion total based on the Total Calculation rule

In this example, the input KPI’s Aggregation and Total Calculation rules don’t influence the calculation result of the second KPI. The calculation result of the second KPI is influenced by its own Aggregation and Total Calculation rules.

Using the Shipment Profile to Distribute Promotion Volume

To use the shipment profile for distributing promotion volume, calculate the value for each subperiod to ensure that the volume is correctly distributed among the subperiods, and then correctly shown per week.

KPI or Product Dimension	Total	Week 1	Week 2
Planned Base Volume	5429	2715	2714
Promotion Volume	20000	10000	10000
Shipment Profile	100.00	70.00	30.00
Incremental Volume	14571	10200	4371
Lump Sum Amount	15000	7500	7500

This formula distributes the incremental volume.

(PromotionVolume, PromotionVolume$Product$Total, PlanBaseVolume,
PlanBaseVolume$Product$Total, ShipmentProfile, Promotion, Period,
Subperiod) => {
if (PromotionVolume !== 0 && PromotionVolume !== undefined) {
const msPerDay = 86400000;
let firstDayOfWeek = Period.datefrom > Promotion.datefrom ? Period.
datefrom : Promotion.datefrom;
let lastDayOfWeek = Period.datethru < Promotion.datethru ? Period.
datethru : Promotion.datethru;
let lengthOfWeek = (lastDayOfWeek - firstDayOfWeek) / msPerDay + 1;
let lengthOfSubperiod = (Subperiod.datethru - Subperiod.datefrom) / msPer-
Day + 1;
return (PromotionVolume$Product$Total - PlanBaseVolume$Product$Total) *
(ShipmentProfile / 100) * (lengthOfSubperiod / lengthOfWeek);
}
return undefined;
}
