Work with Program Management Console Objects and Fields
Learn how the objects and fields work in Program Management Console data model.
Here are some helpful tips when working with the Program Management Console data model and BRE expression sets.
Program
| Field | Notes |
| Active | Enable the Active field in the Program object, as only active programs are processed. |
Note To upload program images, use the Notes & Attachments section of the program record.
Attribute Definition
| Field | Notes |
| Default Value | If an attribute definition of a product is used in the BRE formula for benefit computation, you must enter a value for the Default Value field. If the Default Value field is empty, the benefit computation fails. |
Application Form Template
| Field | Notes |
| Application Flow Name | When an application is submitted using an Application Form Template object, the Application Flow Name field triggers a flow. Enter the API name of the flow that should trigger with the Application Form Template. |
Benefit Type
| Field | Notes |
| Category | Because the formula for benefit computation also checks the benefit type category, the Category field in the Benefit Type object must contain the benefit type category. |
Benefit (for static benefits)
| Field | Notes |
| Value | Must contain a number. |
| Benefit Calculated | Select disabled for static benefits. |
| Unit of Measure | Used for benefit calculation. |
| Program | Used for benefit calculation. |
| Product | Used for benefit calculation. |
| Benefit Type | Used for benefit calculation. |
| Active | Select enabled. |
Benefit (for calculated benefits)
| Required Field | Data |
| Benefit Calculated | Select enabled for calculated benefits. |
| Value | Leave empty for calculated benefits. |
| Rule API Name | Enter the API name of the BRE Expression Set. |
| Unit of Measure | Used for benefit calculation. |
| Program | Used for benefit calculation. |
| Product | Used for benefit calculation. |
| Benefit Type | Used for benefit calculation. |
| Active | Select enabled. |
Usage Impact Group Program Measure
| Field | Notes |
| Program | Enter the appropriate program. |
| Product | Enter the appropriate product. |
| Usage Impact Group Version | Enter the correct Usage Impact Group Version. This is used in benefit calculation. |

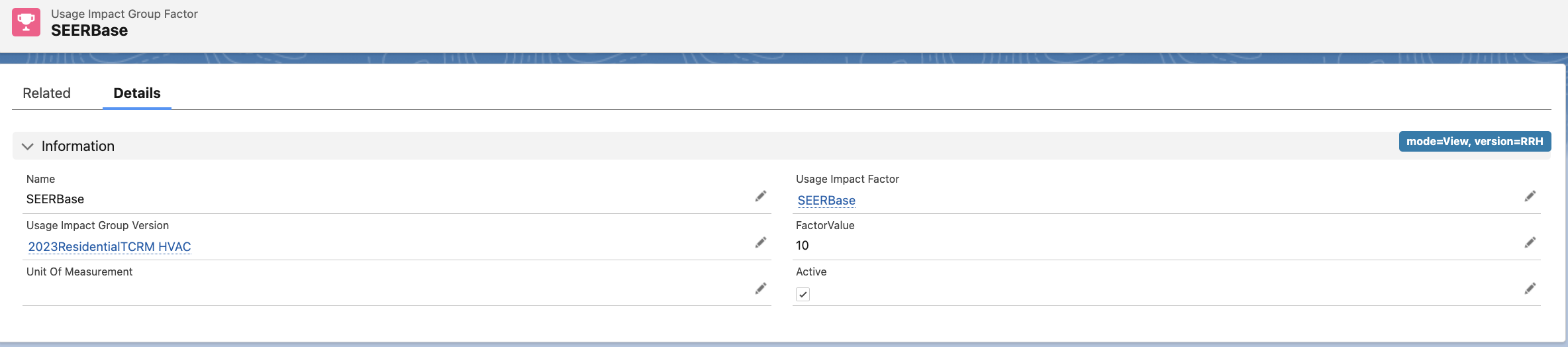

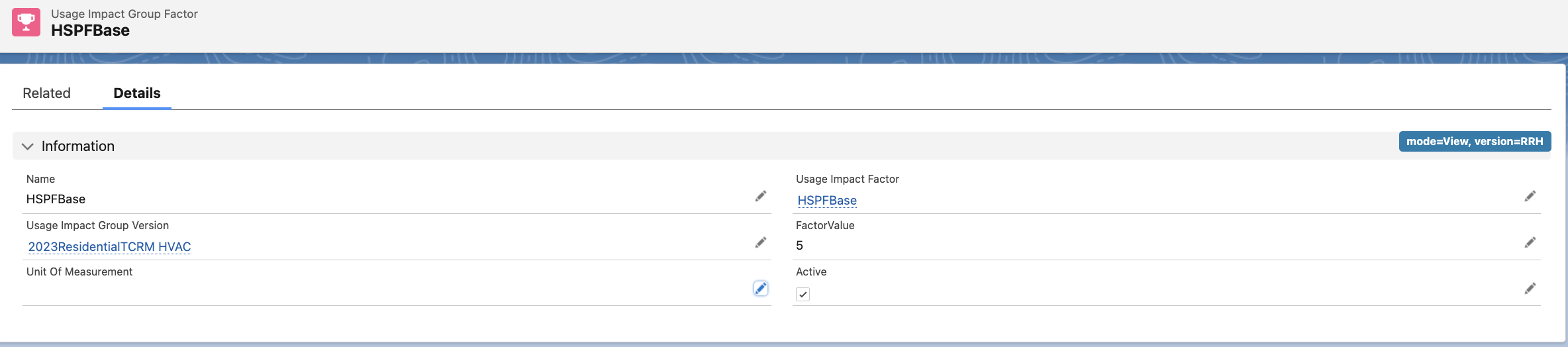

Usage Impact Group Factor
| Field | Notes |
| Name | Should match the variable names defined in the BRE Expression Set. |
| Usage Impact Factor | Should match the variable names defined in the BRE Expression Set. |
| Usage Impact Group Version | Enter the correct Usage Impact Group Version. This is used in benefit calculation. |
| FactorValue | Enter a factor value for HSFPBase and SEERBase records. FactorValue is used in the in the BRE Expression Set. |
Expression Set: Heatpump Energy Savings Benefit Formula
| Field | Notes |
| Api Name | The API name must match the Rule API Name field in the Benefit record. |
| HSFPBase, SEERBase | Must match Usage Impact Group Factor records. |
| Capacity, HSPFee, SEERee | Must match attributes of the Heatpump Product. |
| HOURSh, HOURSc | Constant values defined in the expression set. |

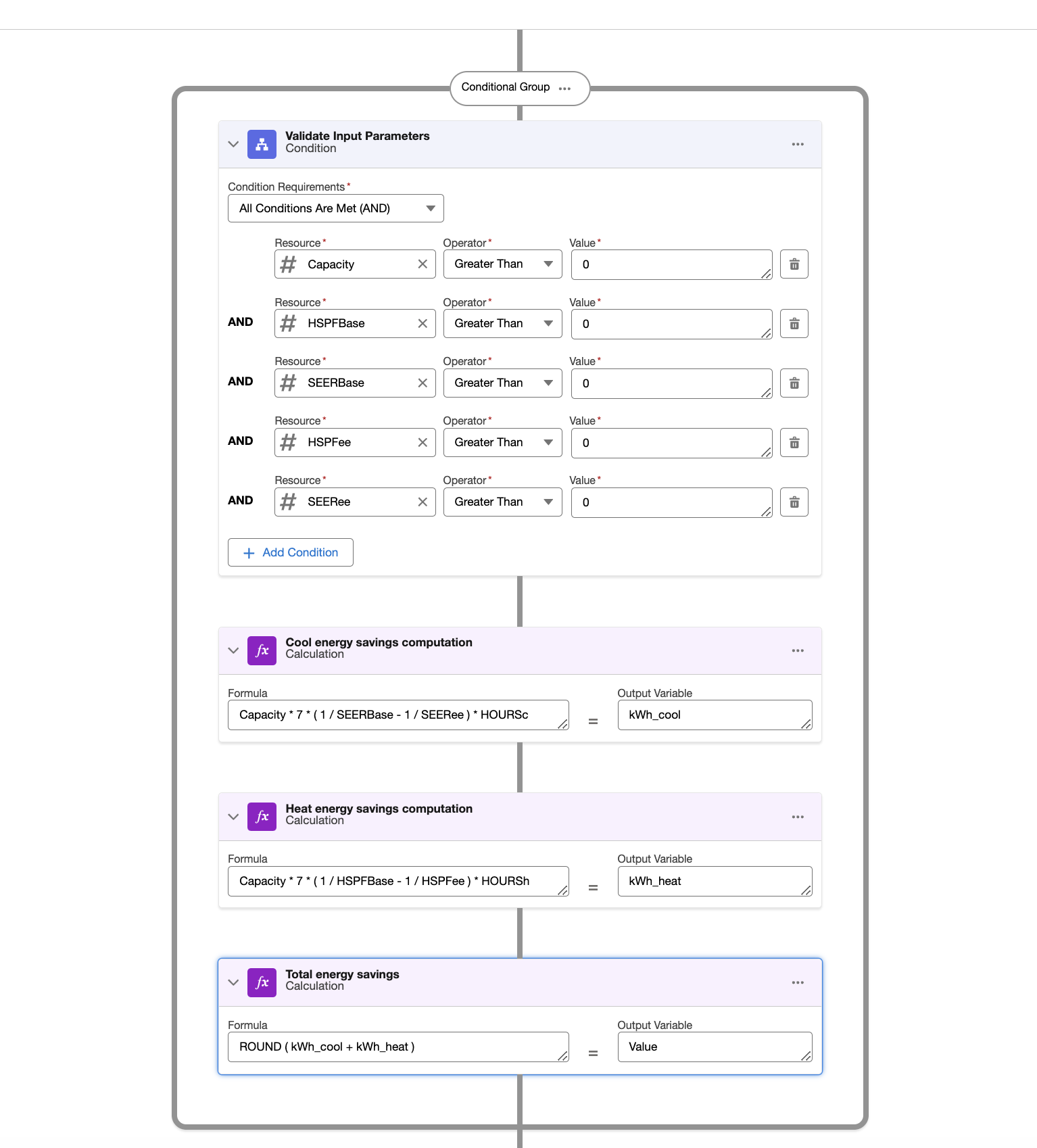

An example Heatpump Energy Savings Benefit Formula expression set.
Expression Set: Heatpump Rebate Benefit Formula
| Field | Notes |
| Api Name | The API name must match the Rule API Name field in the Benefit record. |
| Capacity | Must match the attributes of the Heatpump Product. |

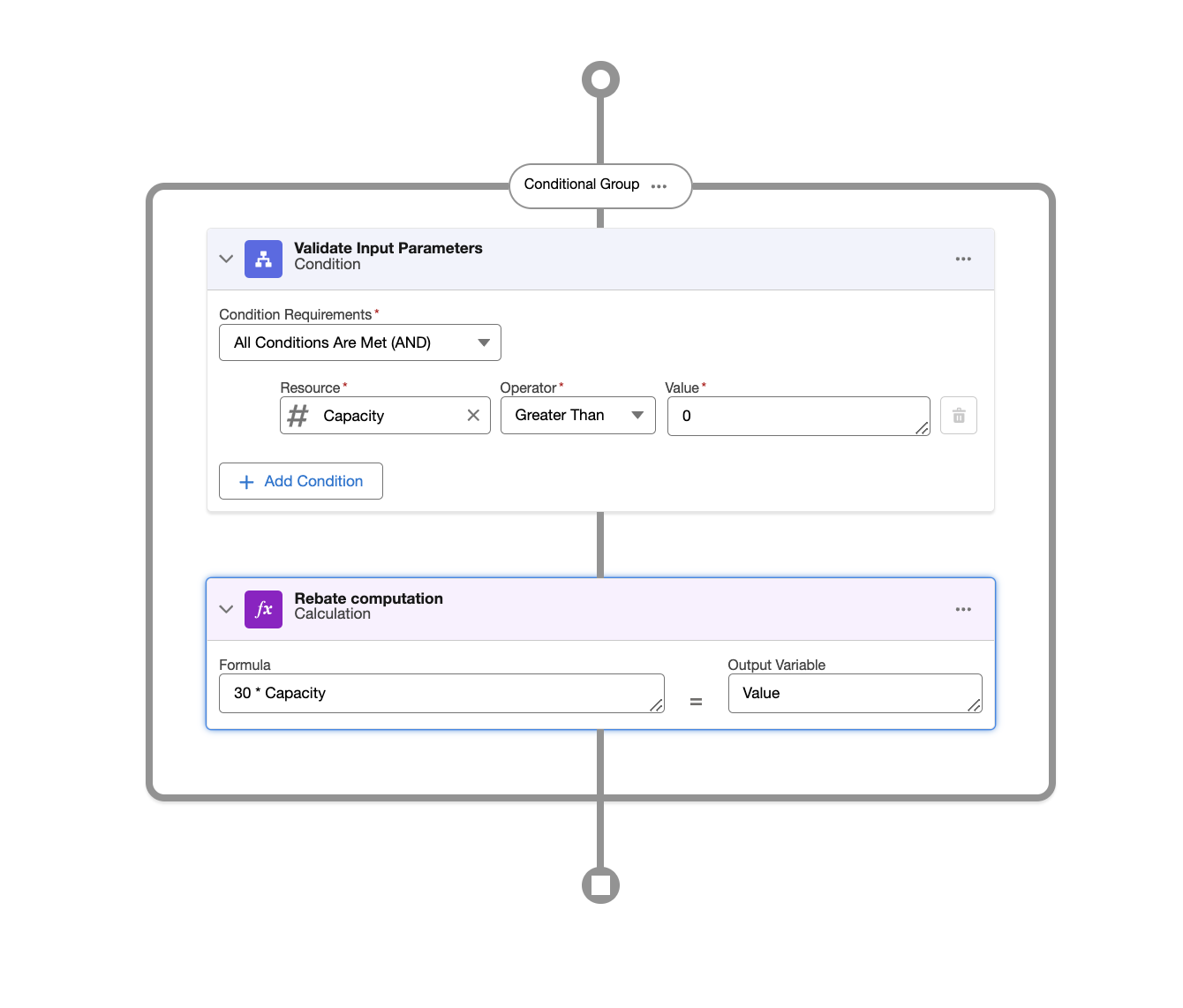

An example Heatpump Rebate Benefit Formula expression set details.
| Field | Notes |
| Api Name | The API name must match the Rule API Name field in the Benefit record. |
| Area | Must match the attributes of the Heatpump Product. |
| Rexist, Rnew | Constant values configured in the Expression Set |

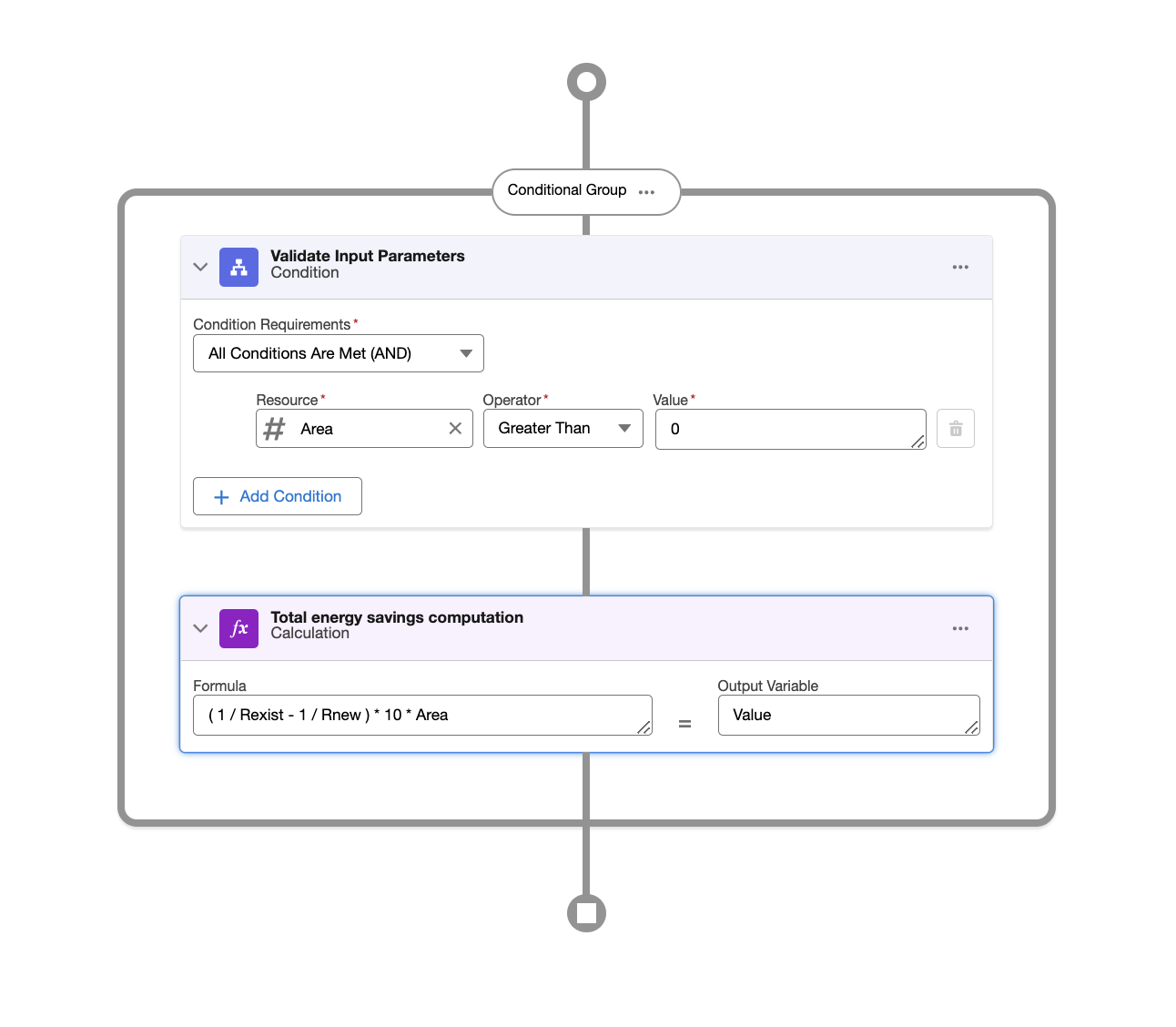

An example Insulation Energy Savings Benefit Formula expression set details.
