            Add Product Attributes to a Reference Product Model for Customer Acquisition Management

            You are here:

            1. Salesforce Help
            2. Docs
            3. Energy and Utilities

            Add Product Attributes to a Reference Product Model for Customer Acquisition Management

            Each Energy & Utilities company has its own set of attributes associated with offered products. These attributes are used to determine different pricing values for the customers based on their inputs. The reference product model uses the Distribution Region attribute to determine the associated pricing. The customer specifies the location where they reside, and the application retrieves and displays the products with pricing applicable for that location

            You can add additional attributes to the reference product model to create more complex scenarios for determining the price for the customers. For example, along with the Distribution Region, you can also add Payment Method as a new product attribute. This allows the customer to specify his location along with payment preference. Based on the customer input for Distribution Region and Payment Method, the application calculates the relevant pricing and displays it on the UI.

            When you're done adding product attributes, remember to Run Maintenance Jobs for Customer Acquisition Manager.

            Here's the high-level workflow for adding a new product attribute Payment Method to the reference product model:

            Define New Product Attributes

            In the Energy & Utilities market, attributes are instrumental in designing a product pricing matrix. Permutations and combinations of attributes such as meter type, annual consumption, distributed region, payment method, and customer category are used to come up with a pricing plan for each offered product.

            To learn more about attributes, see Picklists and Atrributes in EPC.

            Add a new product attribute definition for the Payment Method.

            1. In the App Launcher, go to All Items and click Vlocity Product Designer.
            2. Follow the instructions in Define Attributes in Product Designer to create the Payment Method attribute.

              Field Name

              Value

              Name

              Payment Method

              Code

              ATT_PAYMENT_METHOD

              Active

              Checked

              Attribute Category

              Commodity Cost Component

              Description

              Supported payment methods

              Value Type

              Text

              Default Value

              Leave blank

              Display Sequence

              40

              Filterable

              Checked

              Applicable Objects

              Product

            Add Payment Method Attribute to Object Type Layout

            Object types are like Salesforce record types, but with enhanced capabilities. You can use object types to group products with similar characteristics and ensure consistent behavior and application of rules.

            The newly defined Payment Method attribute must be added to the pre-existing object type layouts so that the new attribute can be displayed and configured for each offered product.

            1. In the App Launcher, go to All Items and click Vlocity Product Designer.
            2. Select Vlocity Objects and Object Types from the drop-down.
            3. Select Product2 Object.
            4. Expand the Product2 and open Commodity Commercial Object Type.
            5. Select Layout Management and click Attribute tab.
            6. Add the Payment Method attribute in the Commodity Attributes section.

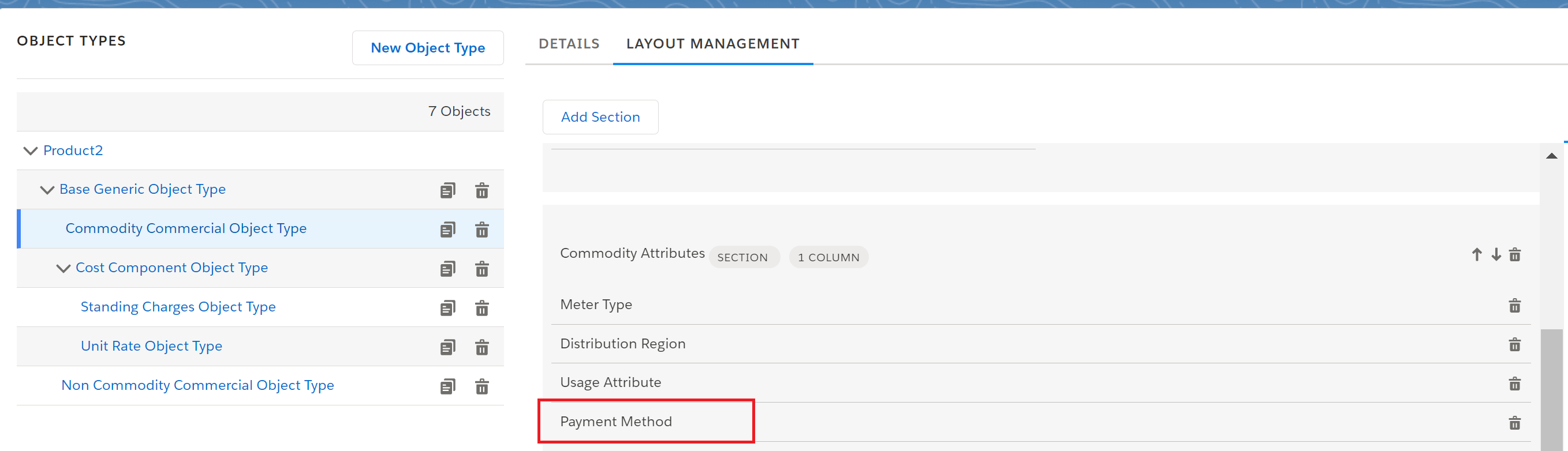

              Payment Method shown added to the Commodity Attributes section
              Note
              Note

              If you are not able to see Payment Method in the Attributes tab of the Object type, follow the steps in Assign Attributes and Fields for an Object Type to assign an attribute using the Product Console.

            7. After the attribute is added, select the Payment Method attribute to edit it. In the Edit Attribute select the Run-time Configurable checkbox. Click Done.
            8. Perform steps 6 and 7 for object types:

              • Standing Charges Object Type

              • Unit Rate Object Type

            Reassign Object Types to Product Specifications

            To reflect the newly added product attribute in the product specification, reassign the object type to all the product specifications in your catalog.

            1. In the App Launcher, go to All Items and click Vlocity Product Designer.
            2. Select Products from the drop-down.
            3. Select Day/Night Tariff product. In the General Properties, delete the value of field Object Type and reassign Commodity Commercial Object Type.
            4. Repeat this step for all your offered products. You can find all the configured commodity products in the reference product model in Configured Commodity Products.

            Update the Calculation Matrix

            Add the Payment Method to the existing calculation matrix to calculate the product pricing based on this newly added attribute.

            1. In the App Launcher, go to All Items and click Vlocity Calculation Matrices.
            2. Select VEEDCSalesPricingMatrix.
            3. From the address bar, copy the record id for the VEEDCSalesPricingMatrix calculation matrix. For example, if the address bar has a URL https://baseurl/lightning/r/vlocity_cmt__CalculationMatrix__c/a0h4x000006xQbLAAU/view, the record id is a0h4x000006xQbLAAU.
            4. Click View Profile, and select Switch to Salesforce Classic.
            5. In the address bar, copy the record id to create a URL in the following format - https://<baseurl>/<record-id>.

              The VEESCSalesPricingMatrix record is displayed.

            6. Scroll down to the Vlocity Calculation Matrix Versions section, and click the latest version of VEEDCSalesPricingMatrixV<latest-version>.
            7. Click Create New Version.
            8. In the Table section, under Input Data:

              • Append ;Payment Method to the Characteristic Name column value for each row. The final value for each row looks like Distribution Region;Payment Method.

              • Payment Method has two Characteristic Values: Pay As You Go and Monthly Direct Debit. For each product, add these values as two separate rows for a given distribution region. For example, for product Green Energy Unit Rate with distribution region Armagh, add two separate rows with the following values:

                Source Product Name

                Source Product Code

                Characterstic Name

                Characterstic Value

                MRC

                NRC

                UP

                CM

                Unit Rate

                BG_GREEN_FUTURE_UR_2021

                Distribution Region;Payment Method

                Armagh;Pay As You Go

                0

                0

                0.2

                kWh

                Unit Rate

                BG_GREEN_FUTURE_UR_2021

                Distribution Region;Payment Method

                Armagh;Monthly Direct Debit

                0

                0

                0.198

                kWh

              • Perform the above two steps for all the combinations of products, distribution region, and payment methods.

                Note
                Note

                Alternatively, you can download the existing matrix as a CSV file using the Download CSV. Perform the changes using a text editor, and then upload them back using Upload CSV. Don’t forget to delete the existing data before uploading the updated CSV file. For more information, see Setting Up Attribute Pricing Matrix.

            9. Click Save Data.
            10. Click Edit under Vlocity Calculation Matrix Version Detail section.
            11. Update the Priority with the same value as the Version.
            12. Select Enabled.
            13. Click Save.
            14. Click Switch to Lightning Experience.

            Update the GetDigitalBasket Integration Procedure

            Update the Integration Procedures VEEDigitalGetBasket and VEEDigitalCachingVIP to enable the application to fetch the products based on the combination of distribution region and payment method.

            1. In the App Launcher, select Omnistudio Integration Procedures.
            2. In Find In page, search VEE and expand VEE/DigitalGetBasket.
            3. Click the latest version of the VEEDigitalGetBasket(Version <latest>).
            4. In the Procedure Configuration, click Create Version.
            5. Select DRTransformSetDistRegionOnOffers.
            6. Under ADDITIONAL INPUT/OUTPUT/FAILURE RESPONSE, click Add Key/Value Pair and add an entry for payment method:

              Key

              Value

              paymentMethod

              %paymentMethod%
            7. Click the Link icon next to Data Mapper Interface to open the VEEDigitalSetDistributionRegionOnOffers Data Mapper.
            8. Select Formulas.
            9. Click Add Formulas to add the following two formulas for payment method:

              • Formula 1

                • Formula

                  IF(offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:code == "ATT_PAYMENT_METHOD",paymentMethod,offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:userValues)

                • Formula Result Path

                  offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:userValues

              • Formula 2

                • Formula

                  IF(offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:code == "ATT_PAYMENT_METHOD",paymentMethod,offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:userValues)

                • Formula Result Path

                  offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:userValues
            10. Close the Data Mapper page and return to the VEEDigitalGetBasket page.
            11. In the Procedure Configuration, click Save.
            12. Click Activate.

            GetDigitalBasket VIP is updated to fetch products for a combination of distribution region and payment method attributes.

            Update the Digital Caching Integration Procedure

            Update the VEEDigitalCachingVIP Integration Procedure to enable the application to generate cache based on the combination of distribution region and payment method attributes.

            1. Go to Setup
            2. In the Quick Find, search custom and select Custom Metadata Types.
            3. Click New Custom Metadata Type and create a new metadata type.

              Field

              Description

              Singular Label

              VEEDigitalPricingAttributes

              Plural Label

              VEEDigitalPricingAttributes

              Object Name

              VEEDigitalPricingAttributes
            4. Click Save.
            5. In Custom Fields, click New and add paymentMethod and distRegion custom fields with the following values:

              Field

              Value

              Data Type

              Text

              Length

              80

              Field Label

              distRegion

              Field Name

              distRegion

              Field Manageability

              Only the package developer (via package upgrade)

              Field

              Value

              Data Type

              Text

              Length

              80

              Field Label

              paymentMethod

              Field Name

              paymentMethod

              Field Manageability

              Only the package developer (via package upgrade)
            6. Go back to Custom Metadata Types.
            7. Click Manage Records next to VEEDigitalPricingAttributes.
            8. Click New. Add a new pricing record with the following values:

              Field

              Value

              Label

              PricingAttribute1

              VEEDigitalPricingAttributes Name

              PricingAttribute1

              distRegion

              Armagh

              paymentMethod

              Pay As You Go
            9. Click Save.
            10. Similarly, create new records for all the combinations of distRegion and paymentMethod.

              Label

              VEEDigitalPricingAttributes Name

              distRegion

              paymentMethod

              PricingAttribute2

              PricingAttribute2

              Armagh

              Monthly Direct Debit

              PricingAttribute3

              PricingAttribute3

              Derby

              Pay As You Go

              PricingAttribute4

              PricingAttribute4

              Derby

              Monthly Direct Debit

              PricingAttribute5

              PricingAttribute5

              Chichester

              Pay As You Go

              PricingAttribute6

              PricingAttribute6

              Chichester

              Monthly Direct Debit

              PricingAttribute7

              PricingAttribute7

              Salisbury

              Pay As You Go

              PricingAttribute8

              PricingAttribute8

              Salisbury

              Monthly Direct Debit
            11. In the App Launcher, select Omnistudio Integration Procedures.
            12. In Find In page, search VEE and expand VEE/DigitalCachingVIP.
            13. Click the latest version of the VEEDigitalCachingVIP(Version <latest>).
            14. In the Procedure Configuration, click Create Version.
            15. Select DRDistributionRegion.
            16. Under ADDITIONAL INPUT/OUTPUT/FAILURE RESPONSE, delete the entry for distRegion.
            17. Click Add Key/Value Pair and add key/value pairs for the new fields created in the metadata:

              Key

              Value

              paymentMethod

              %paymentMethod__c%

              distRegion

              %distRegion__c%
            18. Click the Link icon next to Data Mapper Interface to open the VEETransformDistributionRegion Data Mapper.
            19. Select Formulas.
            20. Click Add Formulas to add the following four formulas for payment method:

              • Formula 1

                • Formula

                  IF(offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:code == "ATT_PAYMENT_METHOD",paymentMethod,offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:userValues)

                • Formula Result Path

                  offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:userValues

              • Formula 2

                • Formula

                  IF(offerDetails:FollowOnGetOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:code == "ATT_PAYMENT_METHOD",paymentMethod,offerDetails:FollowOnGetOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:userValues)

                • Formula Result Path

                  offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:AttributeCategory:records:productAttributes:records:userValues

              • Formula 3

                • Formula

                  IF(offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:code == "ATT_PAYMENT_METHOD",paymentMethod,offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:userValues)

                • Formula Result Path

                  offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:userValues

              • Formula 4

                • Formula

                  IF(offerDetails:FollowOnGetOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:code == "ATT_PAYMENT_METHOD",paymentMethod,offerDetails:FollowOnGetOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:userValues)

                • Formula Result Path

                  offerDetails:getOfferDetails:result:offerDetails:offer:childProducts:childProducts:AttributeCategory:records:productAttributes:records:userValues
            21. Close the Data Mapper page and return to the VEEDigitalCachingVIP page.
            22. In the Procedure Configuration, click Save.
            23. Click Activate.

            The Caching VIP is now updated to generate cache based on various combinations of payment method and distribution region attributes.

            Update the VEEDigitalSalesVIPCaching Scheduled Job

            Update the scheduled job to fetch products based on the payment method and distribution region.

            1. In the App Launcher, select Vlocity Scheduled Jobs.
            2. Select VEEDigitalSalesVIPCaching.
            3. Click Edit icon next to Data Source Spec field.
            4. Replace the query with the following:
              SELECT distRegion__c,paymentmethod__c FROM MetaDataApiName

            Update the Reference UI for Payment Method

            Update the reference UI to add the payment method field.

            1. In the App Launcher, select OmniScripts.
            2. On Find In page, search VEE and expand VEEDigitalOrder.
            3. Click the latest version of the VEEDigitalCachingVIP(Version <latest>).
            4. Click New Version.
            5. Expand stepGetContextDetails.
            6. Scroll down, and add the Payment Preference as a radio button with two options:

              • Monthly Direct Debit

              • Pay As You Go

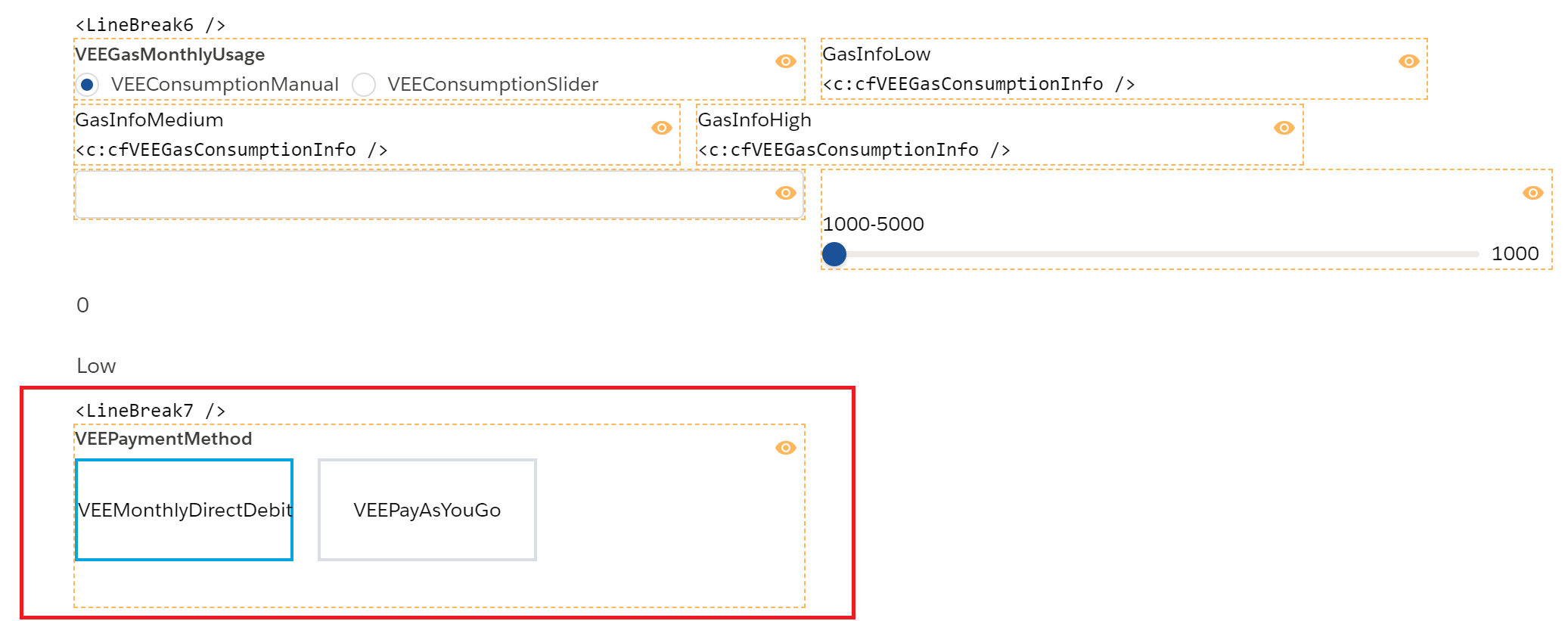

              Payment Method with Monthly Direct Debit and Pay As You Go selected.
            7. Close stepGetContextDetails.
            8. Select getOfferDetails.
            9. In the Properties, expand Remote Properties.
            10. Under the Extra Payload, click Add New Key/Value Pair. Add payment method which is passed as input to the integration procedure:

              Key

              Value

              paymentMethod

              %paymentMethod%
            11. Close getOfferDetails.
            12. Expand Enroll.
            13. Locate element TALocality. This element displays the distribution region selected by the user in the get details step.
            14. Add another text element below TALocality with the following details:

              Field

              Value

              Name

              VEEPaymentMethod

              Text

              %paymentMethod%
            15. Click Activate Version.

            The UI is now configured to pass Payment Method as user input to the Integration Procedure, and display the user choice of payment method on the enroll page.
