Add Peer Objects to an ARC Relationship Graph
On one node on an ARC Relationship Graph you can show fields from two objects that have a one-to-one lookup relationship with each other.
Required Editions
| View supported product editions. |
| User Permissions Needed | |
|---|---|
| To add peer objects on ARC graphs: | View permissions information. |
There’s a hard limit on the total number of custom fields allowed per object. If you have objects that have more than the maximum number of fields that an object can hold, and use peer objects with a one-to-one lookup relationship to hold those fields, you can show those fields in a single node on an ARC Relationship Graph.
When Show Peer Objects is turned on, only records that have a one-to-one lookup relationship between the Node Object and the Peer Object are shown on the ARC Relationship Graph. If a record that matches the node object doesn’t have a one-to-one lookup relationship to the Peer object, then it’s not shown in the graph.
For example, you can configure a node where Asset object is the node object and Vehicle object is the peer object, and they share a one-to-one lookup relationship. If an asset record is not related to a vehicle record through a one-to-one lookup relationship, then the asset record doesn’t display on the ARC Relationship Graph.
To show records that match only the node object, create a new child node on the ARC Relationship Graph and don’t turn on Show Child Records.
- From Setup, in the Quick Find box, enter Actionable Relationship Center, and then select Actionable Relationship Center.
- Click New Relationship Graph or edit an existing graph.
- Create a new node or select an existing node.
-

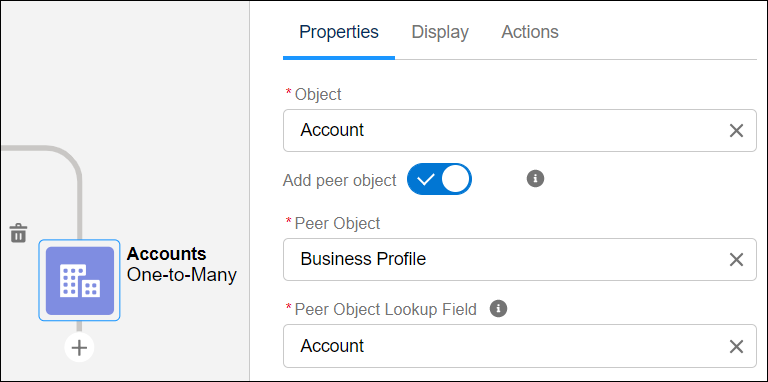

On the Properties tab, turn on Add Peer Object.
- In the Peer Object dropdown, select a peer object.
- In the Peer Object Lookup Field, select a field from the peer object that points to the node object.
- Configure the fields on the Properties tab.
-
Click the Display tab to select fields from the node object and the
peer object to show on the ARC Relationship Graph.
-

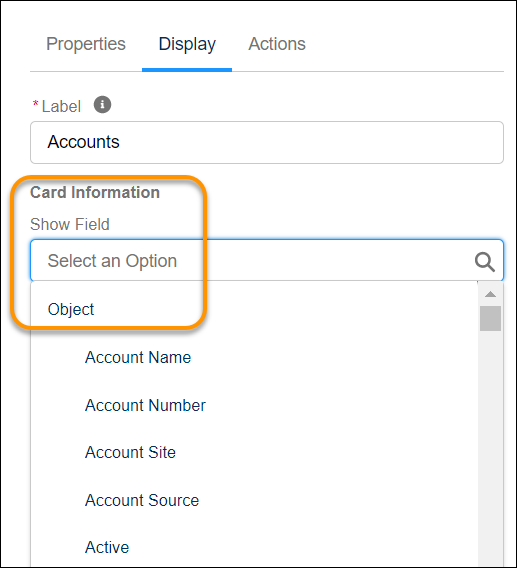

In Card Information, click Select an Option to select a field to
show on the card. node object fields display first.
-

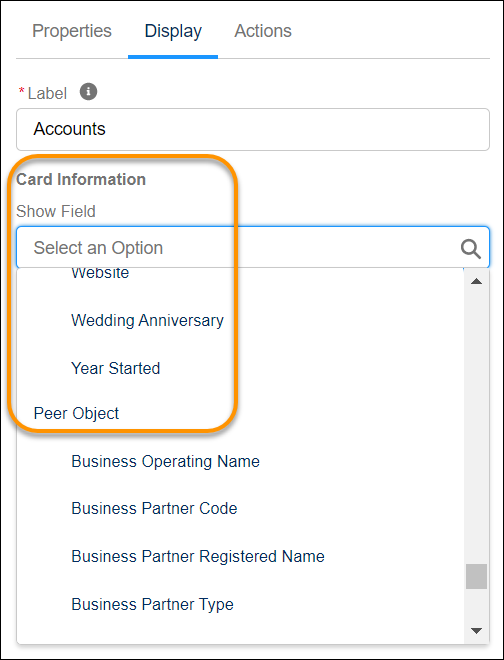

Scroll through the list to view and select Peer Object fields.
- To select and show up to four fields, click Add Field.
-
In Card Information, click Select an Option to select a field to
show on the card. node object fields display first.
-
Click the Actions tab to add record actions from the node object and
the peer object to show on the ARC Relationship Graph.
- In Peer Record Actions, click Select an Item, and select up to four peer record actions.
- Save your changes.
