Show Rule Explanations to Users (Example)

To encourage higher education among adults, a university offers a 20% discount on base fees to people over 45 who have a minimum grade point average (GPA) of 3.

You create an expression set that checks the eligibility of the student based on the age and GPA. The expression set returns the discounted fees if the student is eligible. You select the explainability message templates for the steps for which you want to show explanations to users. You then simulate the expression set and preview how your external users see the explanations.

1. Create an expression set version and define these variables and constants:

   Variables and Constants

   Resource Name	Resource Type	Data Type	Initial Value
   Birthdate	Variable	Date	—
   Age	Variable	Number	—
   GPA	Variable	Number	—
   DiscountedFees	Variable	Currency	—
   BaseFees	Constant	Currency	40,000
   EligibleDiscount	Constant	Percent	20

2. Add these steps to the expression set version:

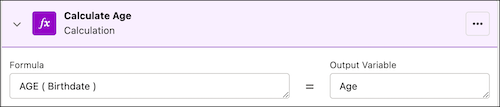

   1. Calculation: To calculate the age of the student based on the birth date that the student enters.

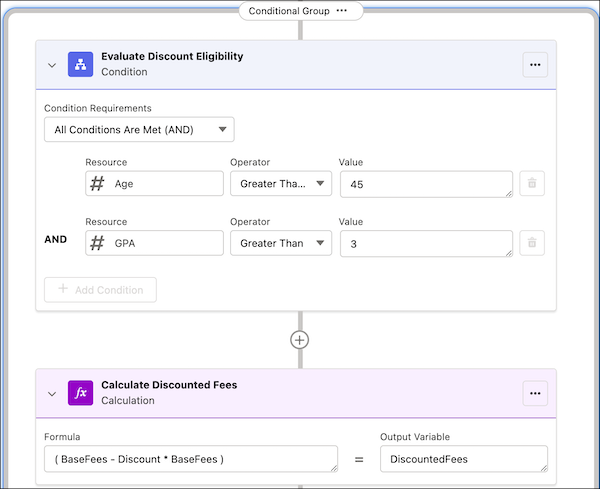

   2. Conditional Group: A condition that checks whether the student is above 45 and has a minimum GPA of 3.
   3. Calculation: A calculation inside the conditional group. The calculation runs only if the condition evaluates to true. The calculation provides the final discounted fees.



3. Select the condition step, and then select the relevant explainability message templates that provide the explanations for when the condition is met (Passed) and isn’t met (Failed).

   Explainability Message Templates Selected

   Template Name	Template Message	Template Usage Scenario
   DiscountEligible	Based on your age and GPA, you’re eligible for a 20% discount on the base fees.	Condition result is Passed
   DiscountNotEligible	You don't meet the eligibility criteria for a fee discount. To be eligible for the discount, your age must be at least 45, and have a minimum GPA of 3.	Condition result is Failed

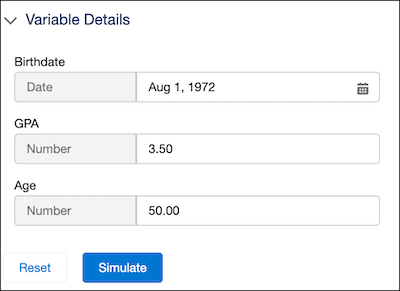

4. Simulate the version to test whether everything works as expected by using these sample input values:
   • Age: 50
   • GPA: 3.5

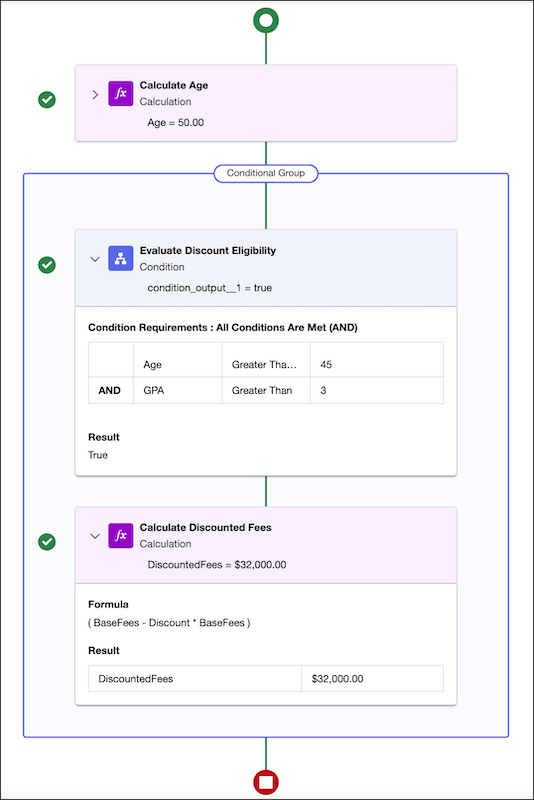

5. As expected, your simulation results show that the input values that you entered qualify for a discounted fee.

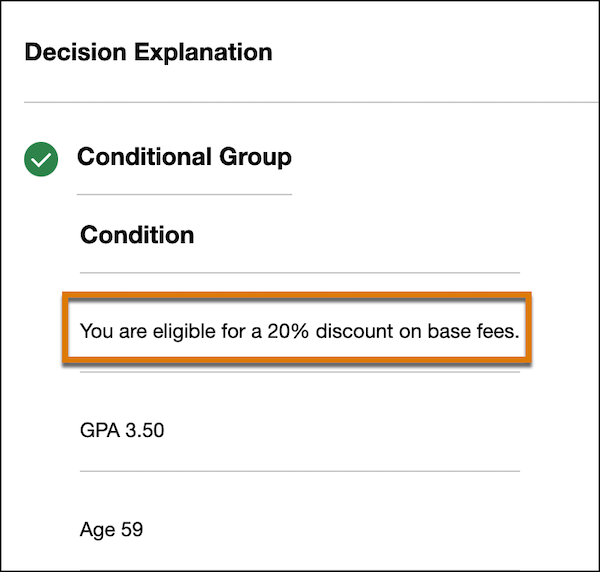

6. To preview how your viewers see the explanation that you added to the condition step, click , and then select Concise View.
