Add Timeline to a Record Page

To let your Salesforce users see the Timeline and its data, add it to a Lightning record page.

Required Editions

Available in: Lightning Experience
Available in: All editions with Industry Service Excellence permission set licenses
User Permissions Needed
To configure a Timeline: Read and Edit access for objects you’re including on the Timeline
  1. Go to the record page of the object on which you created a timeline.
  2. Select the gear icon on the top-right corner of the page and then click Edit Page.
  3. Drag the Timeline component to the editable content area.
  4. To select the timeline configurations you want to make available to users, click Select in the component properties panel.
    Only active timeline configurations are available for selection.

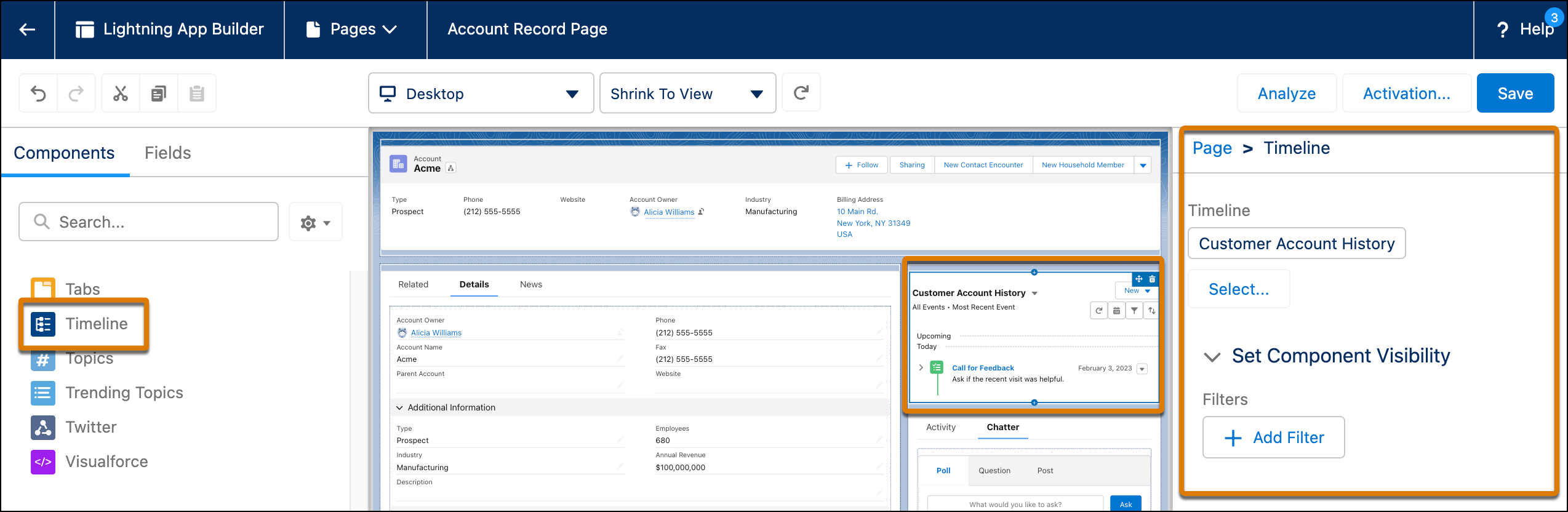

    Lightning App Builder window with Timeline component
  5. In the Timeline window, select the required configurations and then click OK.
    You can select up to 5 timeline configurations.
  6. Save and activate your changes.
