Flow Screen Component: Select Service Resources

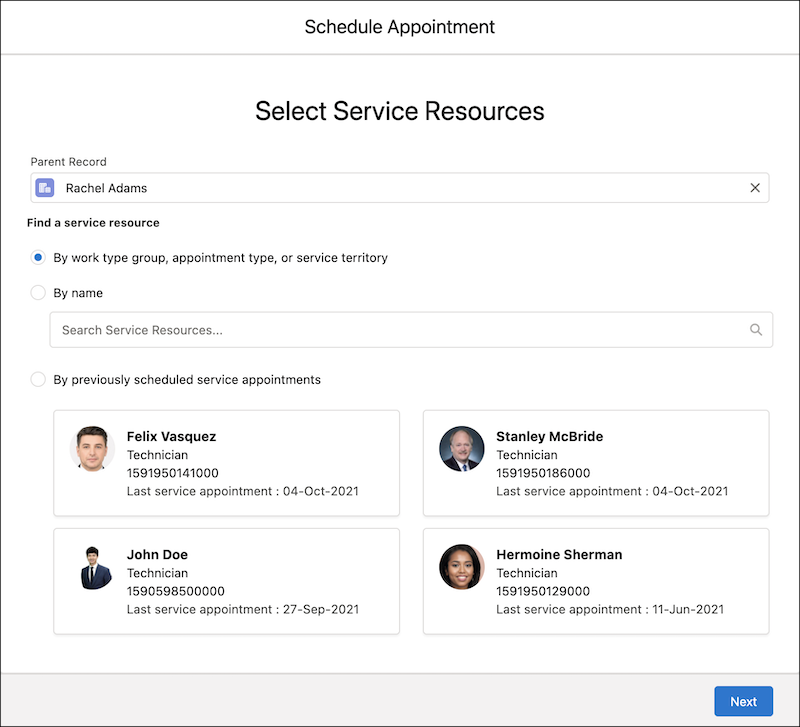

With the Select Service Resources Flow Screen component, users can select service resources (internal appointment attendees) for an account, case, lead, or opportunity record.
Required Editions
| Available in: Lightning Experience. |
| Available in: Enterprise and Unlimited Editions |
| Attribute | Description | Additional Information |
|---|---|---|
| API Name | Use underscores and alphanumeric characters without spaces. Begin the name with a letter, don’t end the name with an underscore, and don’t use two consecutive underscores. |
|
| Parent Record | ID of the parent record for which the service resource is selected. If this attribute has a value, the related parent record ID is automatically selected. Supported values are account ID, case ID, opportunity ID, and lead ID. In outbound flows, this attribute is required to use the component. In default flows, this value is stored in recordId, which is a flow input variable. Users can select either a different account or opportunity by using the lookup field, which automatically changes the attribute value. In inbound flows, admins can set a value to select a parent record by default. If a value isn’t set, the account ID of the logged-in user is automatically set as the parent record value. For example, 001xx000003GZQFAA4. |
|
| Contact ID | Contact ID of the community user. If Parent Record isn't available in inbound flows, Contact ID is auto-populated. For example, 003RM000007Vy2pYAC. |
|
| Inbound Scheduling | Indicates whether the component is used in an inbound scheduling flow. When the value is entered as {!$GlobalConstant.True} and a parent record isn’t passed, the Parent Record value is automatically selected as the record ID of the user who's logged in. If a value isn’t entered, the {!$GlobalConstant.False} value is used by default. For example, {!$GlobalConstant.False}. |
|
| Outbound flow available to community users | Indicates whether the inbound flow is available as an outbound flow to community users. When the value of the isOutboundCommunity variable for this attribute is entered as {!$GlobalConstant.True} and the value of the isInbound variable is entered as {!$GlobalConstant.False}, the Parent Record field becomes available to community users. If a value isn’t entered for the isOutboundCommunity variable, the {!$GlobalConstant.False} value is used by default. For example, {!$GlobalConstant.False}. |
|
| Selected Option | Method to select a resource. Supported values are:
If a value is entered, the corresponding option is selected on the screen by default. For example, findResource. |
|
| Service Resource | ID of the selected service resource. This attribute is used if the Selected Option value is either specific or previousServiceResource. When the Selected Option value is entered as previousServiceResource, the service resource in this attribute is selected by default if the resource exists in previous appointments. Users can select a different resource if necessary. For example, 0HnRM0000004RWo0AM. |
|
| Service Resource Name | Name of the selected service resource. This attribute is used only when a flow is run from mobile devices and the Selected Option value is specific. |
|
| Validations | Error message validations in the Select Service Resources component. This value is auto-populated. For example, the attribute stores the error message that’s generated when a user tries to go to the next screen without selecting an option. |
|
