            Customize Colors in Visualizations

            You are here:

            1. Salesforce Help
            2. Docs
            3. Tableau Next

            Customize Colors in Visualizations

            Apply custom colors to a Tableau Next visualization to make them more engaging and easier to interpret. Choose colors that align with your branding, provide visual cues about data patterns, or highlight business priorities. You can set up to 10 custom colors in a chart. If a chart has more than 10 values, it reuses the colors in sequential order.

            Required Editions

            View supported editions.
            User Permissions Needed
            To customize colors in a Tableau Next visualization: Tableau Unmetered Platform Analyst or Tableau Next Platform Analyst permission set

            For example, apply custom colors in a visualization to represent sales by product category.

            1. In a chart visualization, drag a discrete field you want to customize colors for onto Color in the Marks section. For the chart in the example, select Product Category.
            2. To customize the color for chart values, click Color.
            3. In the Edit Colors window, customize colors based on the field type.
              Field Type How to Customize Colors
              Dimension Choose colors from the Default or Data palette. Alternatively, to define a custom color, select a color from the color picker or enter a Hex or RGB value.
              Measure Set colors for the Start Value and End Value from the DefaultData, or Custom palette. To include a midpoint, select Center Value and set its color.

              To restore default values, click Reset in the Edit Colors window.

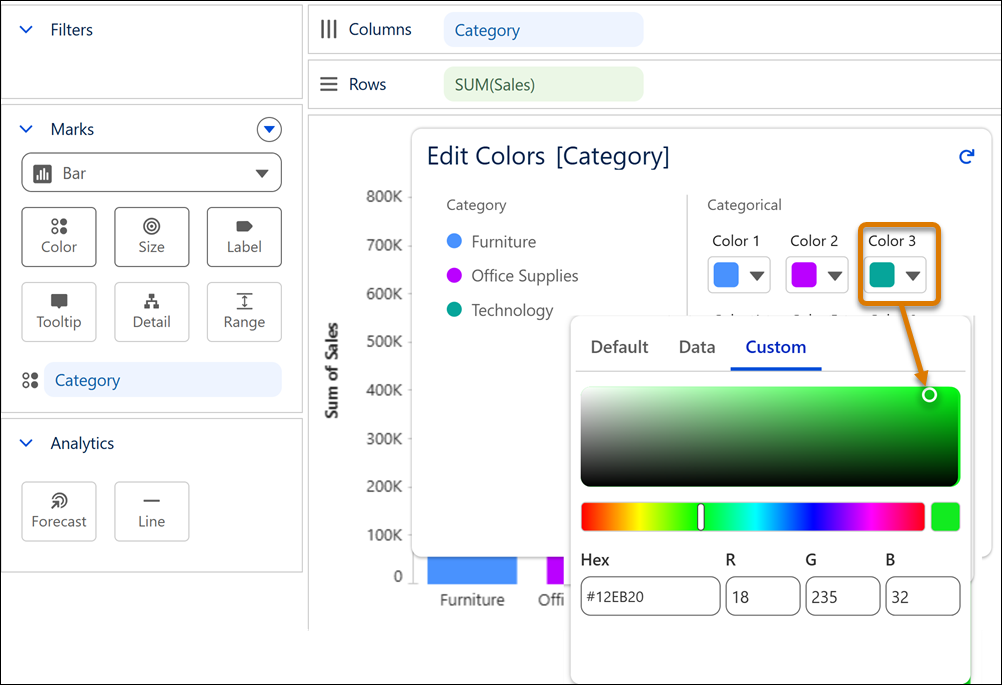

            Apply custom color to Tableau Next viz chart
