Configuring Apex Data Providers in Experience Builder (Beta)

Prerequisites

Verify that you meet these prerequisites:

• Ensure that your org has the Enable enhanced features permission turned on in Experience Sites.
• Ensure that your org has the Use advance data binding in Lightning Web Runtime permission turned on in LWR Sites.
• Create a simple website using the Experience Site Builder UI.

Data Provider Addition and Data Binding

Create an Apex Class and Apex Method that you want to add as a data provider to a textbox component.

• The Apex class should be the valid name of the publicly available Apex class that contains at least one method annotated with @AuraEnabled (cacheable=true scope='global'). If you assign a namespace, you must prefix or qualify the Apex class with Namespace_

  public class ApexDataProviderDemo { @AuraEnabled(cacheable=true scope = 'global') public static Account getAccount(String name){ Account account = [SELECT FIELDS(STANDARD) FROM Account where Name =:name ]; return account; }}

• An Apex controller method is only eligible to qualify for Apex data provider if that is annotated with @AuraEnabled(cacheable=true scope='global') and contains supported input parameters and return type.
• Render the site in the builder and add the bindings.

Configuration of an Apex Data Provider

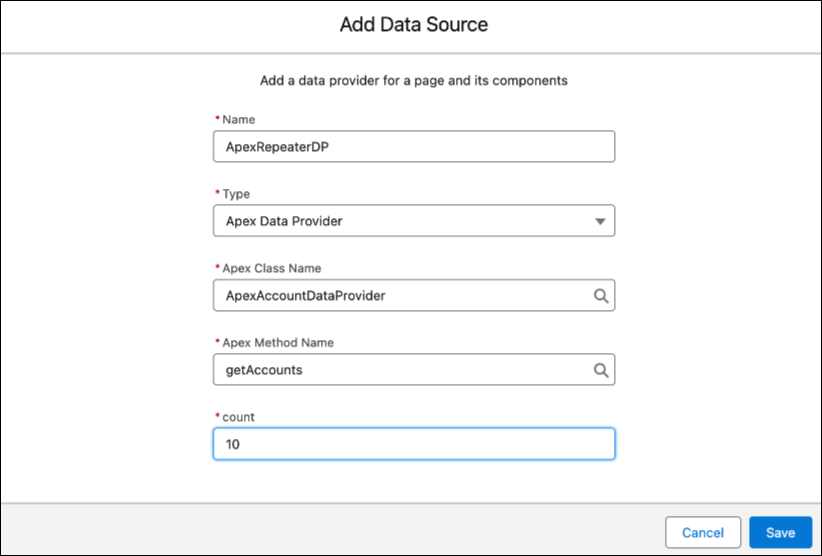

In the Add Data Provider window, enter a unique name for the data provider you want to add and select the type as Apex Data Provider. Provide the Apex class name, Apex method name, and Apex method parameters (is any).

Apex Data Provider Metadata

The metadata contains key blocks of information such as Expression key, Input Schema and Output Schema.

Expression Key:

• The format for the Apex data provider expression key should follow a developer name pattern and should not contain any predefined expression keys. Predefined expression keys include Product, Item, Order, Cart, Checkout, SplitShipment, User, Search, Wishlists, PurchasedProduct, MyProfile, Subscription, _layout, _metadata, $form, and $page.
• Expression keys have to be unique in the component hierarchy. For example, if there is a Grid present on the page which is associated with a data provider, and a Text block inside its repeater slot is also associated with a data provider, then the two data providers cannot have the same expression key. This avoids any conflicts when there are nested data providers in the hierarchy.

Input Schema: Consists of Apex class, Apex method, Apex method parameters, if required by the Apex method.

• Apex Class: The Apex class should be the valid name of the publicly available Apex class that contains at least one method. The Apex class should also be prefixed with namespace__ if there is any 7 namespace required to access the Apex class.
• Apex Method: An Apex method is only eligible to qualify for Apex data provider if that is annotated with @AuraEnabled(cacheable=true scope='global') and contains supported input parameters and return type.
• Apex Method Parameters

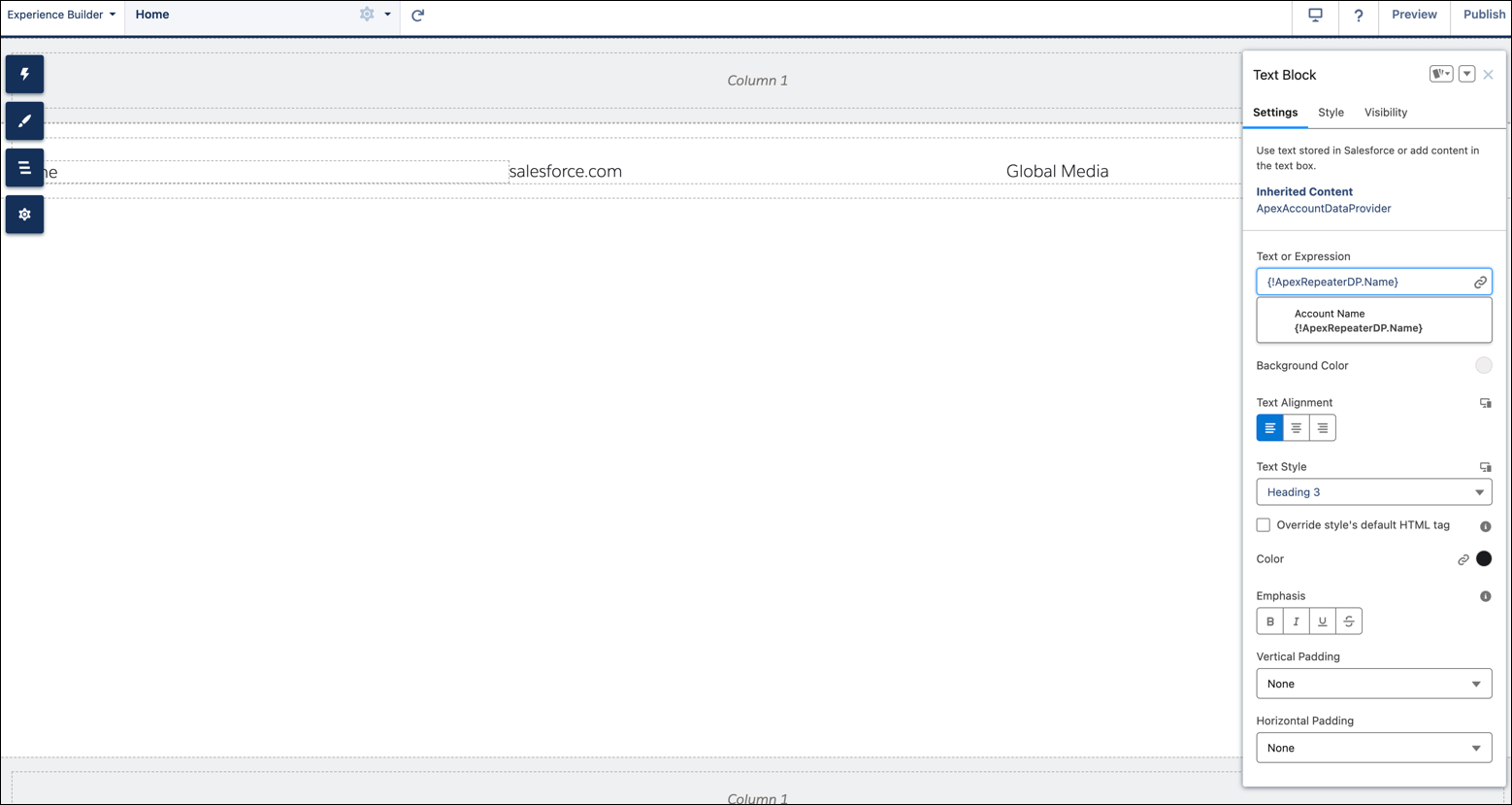

Output Schema: Output schema for Apex Data Provider is the data type. The fields consist of complex data types, returned by the associated Apex method. The output schema is used in data binding on the component having the Apex data provider configured. The component uses expressions to use data binding in this form: {!<sfdcExpressionKey>.<fieldName>}.

The field name can vary for describable and non-describable data types.

• Describable Data Type: The members of the describable data type are predefined and thus there is a definitive way to refer to them in the expression.

  For example, if the return type is Account sobject, the data binding expression is {!<sfdcExpressionKey>. Name} or {!<sfdcExpressionKey>.Id} or {!<sfdcExpressionKey. customField__c}

• Non-Describable Data Type: There is no definite way to refer to a non-describable data type in a data binding expression. For this, we use a pre-defined literal call value. For example, while referring a primitive data type in data binding, the expression is {!<sfdcExpressionKey>.value}
