            Considerations for Process Adaptations for Print Action

            You are here:

            1. Salesforce Help
            2. Docs
            3. Visual Studio Code Based Modeler

            Considerations for Process Adaptations for Print Action

            Configure business process adaptations in Visual Studio Code-based Modeler to generate PDF reports in the Consumer Goods offline mobile app. In the MyDisplay_DisplayDetailsProcess.processflow.xml contract, create an event handler to handle the printPDF event. Next, trigger the PrintV2 action on the Display module of the app to generate the PDF reports. Lastly, test the results on a mobile device.

            Required Editions

            Available in: Professional, Enterprise, and Unlimited Editions that have Consumer Goods Cloud enabled

            Some backend processes are triggered when a sales rep taps a button to generate PDF reports in the Consumer Goods offline mobile app.

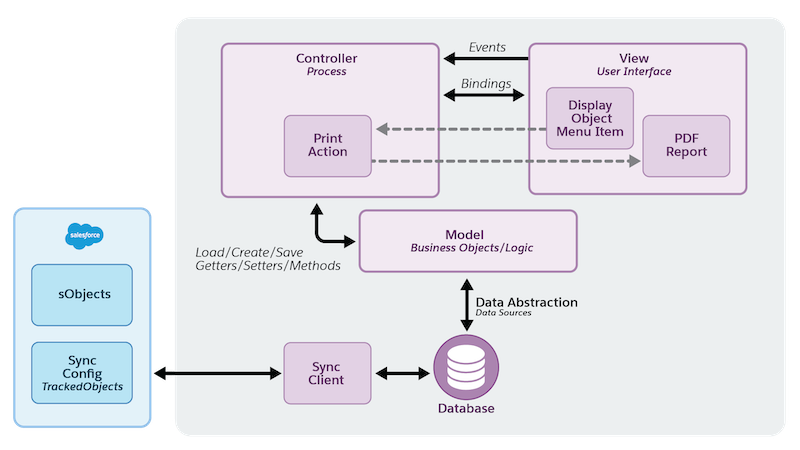

            The backend processes that occur when a sales rep taps a button on the Consumer Goods offline mobile app to create a PDF report.

            View

            The new menu creates an event that ensures sales reps view the button to generate the PDF report on the app UI. The display process handles the event and the event’s visibility is bound to a business object method.

            Controller

            The controller handles the print action and calls the method to print the PDF report.

            Model

            The model determines the business objects and the business methods and invokes the framework method to print the PDF report.

            • Configure the Event Handler
              Create an event handler in the MyDisplay_DisplayDetailsProcess.processflow.xml contract to handle the print PDF event. An event handler is a callback routine that dictates the action that follows an event. For example, to see a PDF report, a sales rep taps the Print PDF button on the Consumer Goods offline app. Here, the button-tapping action is an event, and the generation of PDF report is an event handler.
            • Configure the PrintV2 Action
              Create an action named PrintV2 in the MyDisplay_DisplayDetailsProcess.processflow.xml contract to trigger PDF report generation in the Consumer Goods offline mobile app.
