Insurance and Financial Services Data Model
The Insurance and Financial Services data model is a comprehensive data model designed to address the complexities and challenges faced by cloud-based insurance and financial services systems across insurance markets.

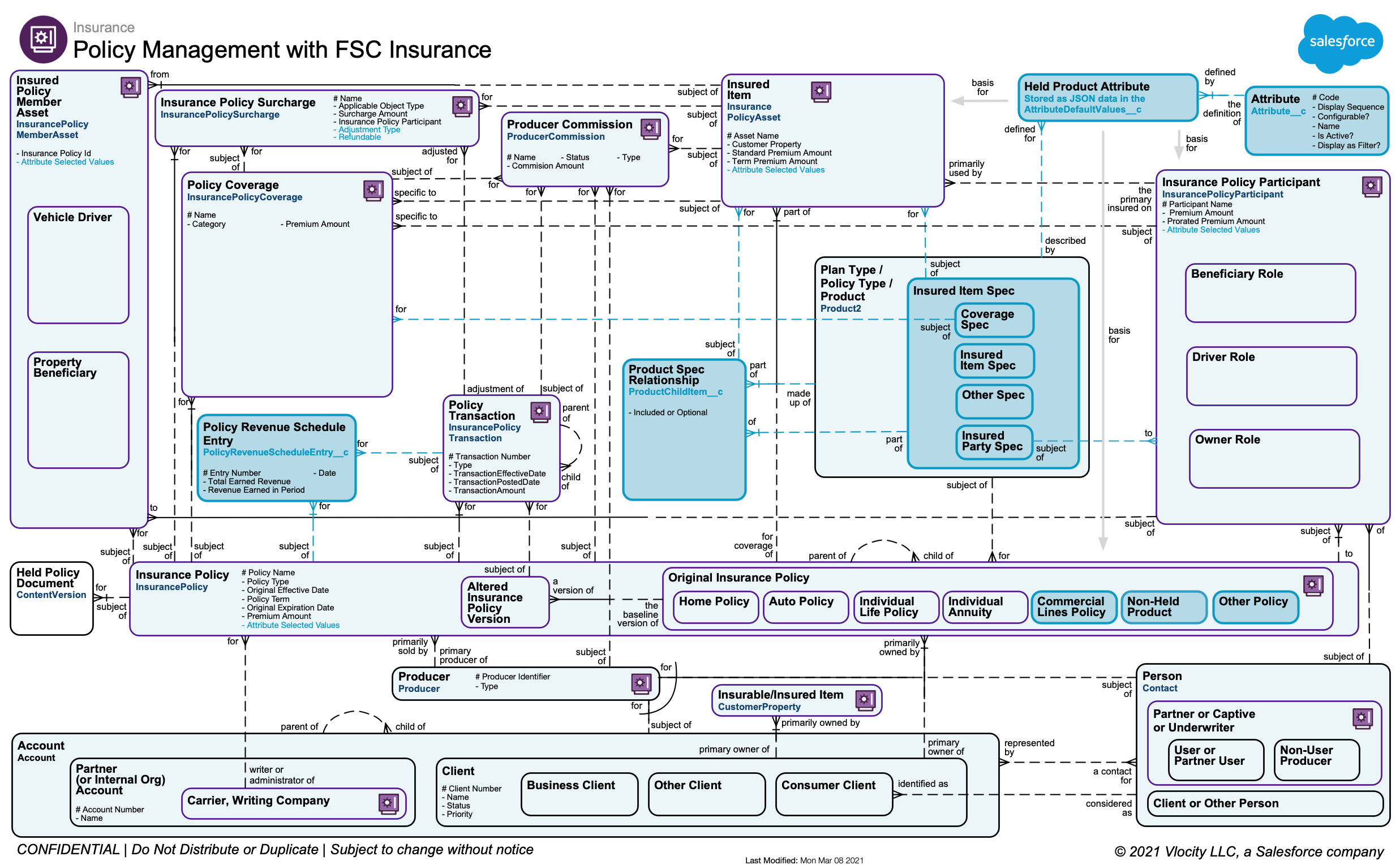

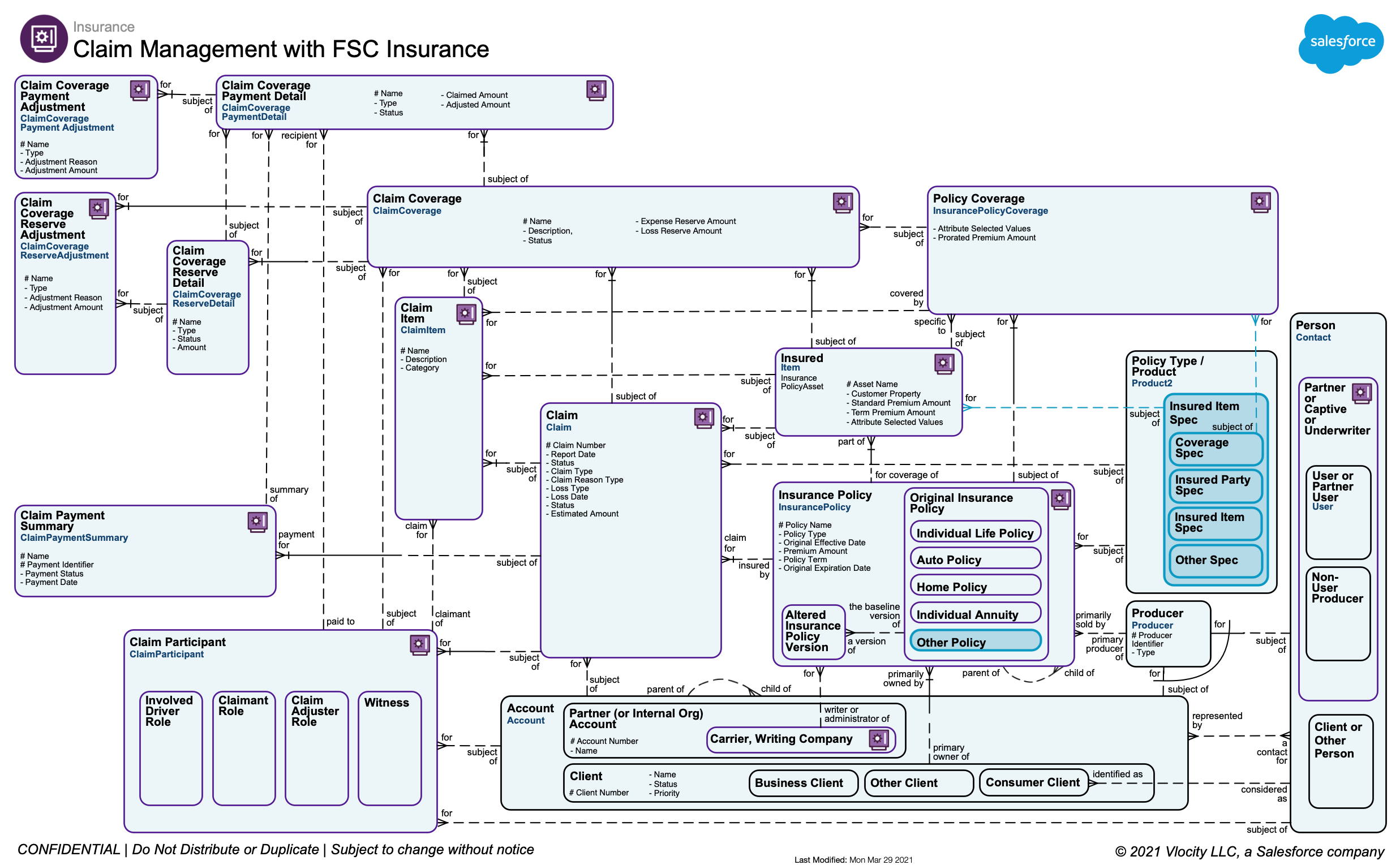

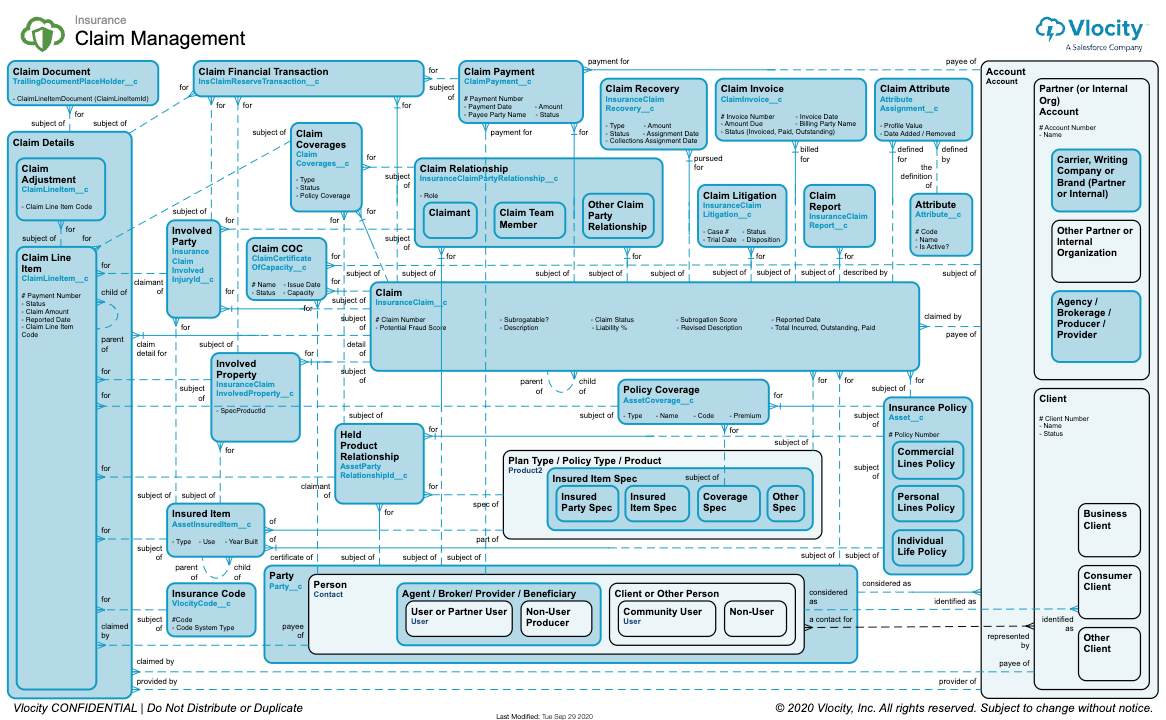

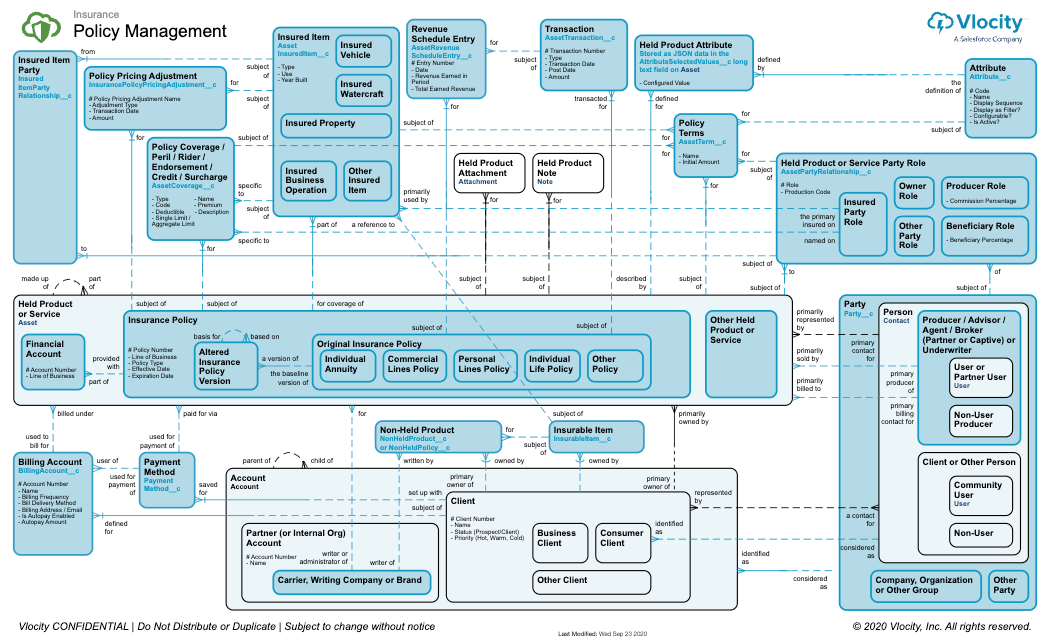

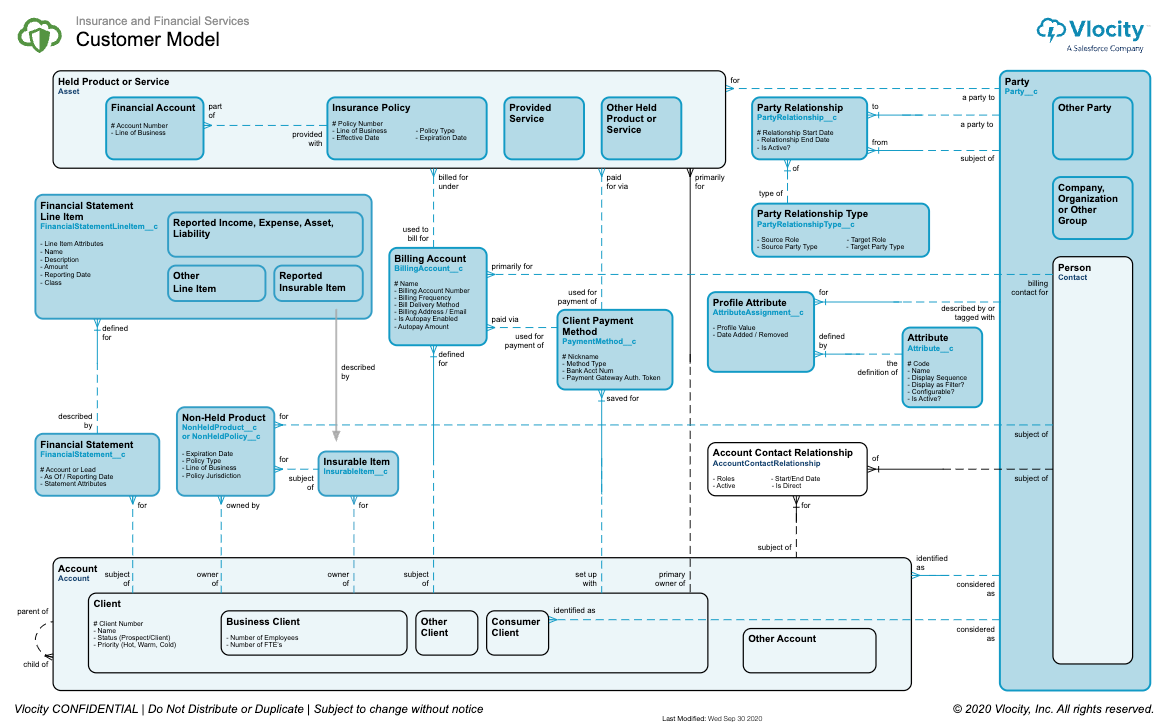

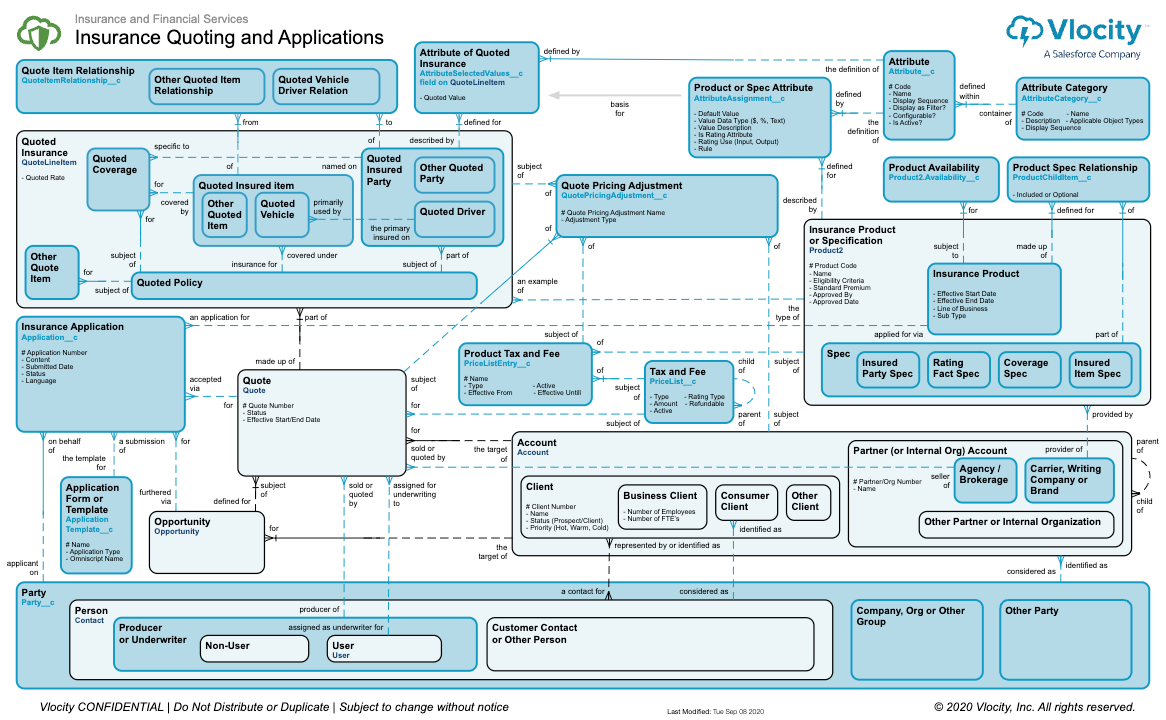

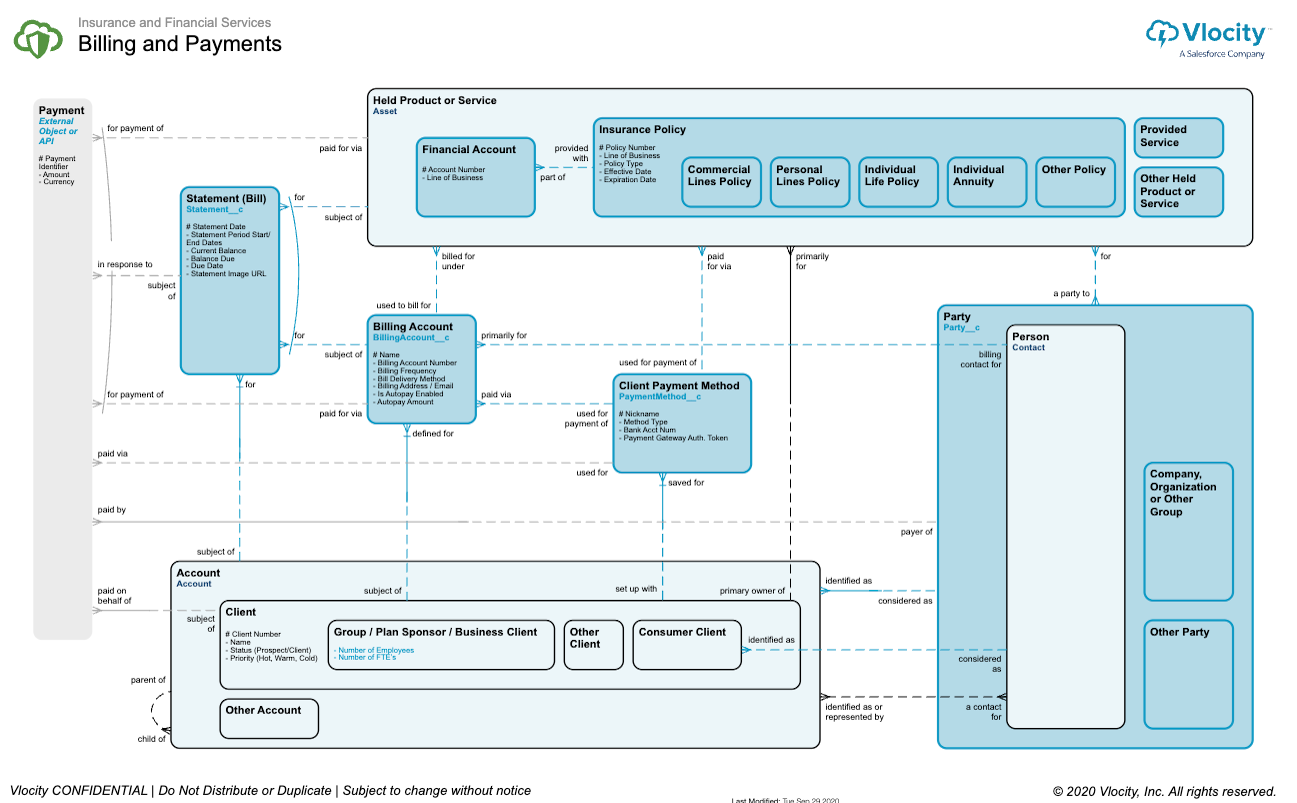

The model covers concepts including customer management, producer management, insurance product management, policy rating and quoting, policy issuance and administration, claims management, and much more. The Insurance and Financial Services data model is a 100% additive extension of the standard Salesforce data model and is designed to work with Salesforce Financial Services Cloud. Each ERD page in this section illustrates the important entities, relationships, and extensions to the Salesforce object model. For a list of the data, system, and integration objects for the Insurance and Financial Services data model, see the object list below. To understand the notation used in these diagrams, see the About Entity Relationship Diagram Notation.
Different ERDs apply depending on whether you use a harmonized org. (If harmonization is a new concept for you, see Plan Your Switch to the Salesforce Data Model.
Vlocity Insurance Data Model |
Harmonized FSC Insurance Policy Object Model |
|---|---|
Vlocity Insurance and Financial Services Object List
For details about Vlocity Insurance and Financial Services objects, see the Insurance Object List.
