Create a Class-Based Interaction Launcher

Create a class-based interaction launcher, which uses an Apex class to get a search request and search response.

1. Create a global Apex class that implements, for example:
   • vlocity_ins.VlocityOpenInterface
   • OR
   • vlocity_ins.VlocityOpenInterface2

   global with sharing class GetMockupSearchRequestResults implements vlocity_ins.VlocityOpenInterface2

2. Include two methods:
   • getSearchRequest
   • getSearchResults

   global Object invokeMethod(String methodName, Map < String, Object > inputs, Map < String, Object > output, Map < String, Object > options {

      Boolean success = true;
      if (methodName == 'getSearchRequest') {

       success = getSearchRequest(inputs, output, options);
      }
      if (methodName == 'getSearchResults') {

       success = getSearchResults(inputs, output, options);
      }
      return success;
     }

3. Then construct the vlocity_ins.LookupRequest interface:

   vlocity_ins.LookupRequest request =

   (vlocity_ins.LookupRequest) inputs.get('lookupRequest');

   List<Map<String, Object>> previousSearchResults = request.previousSearchResults;

   Map<String, Object> additionalData = request.additionalData;

   List<String> searchFieldList = request.searchFieldList;

   searchFieldList.add('FirstName');

   searchFieldList.add('LastName');

   Map<String, Map<String, String>>labelTypeMap = request.searchFieldsLabelTypeMap;

   Map<String, String> newType1 = new Map<String, String> ();

   newType1.put('label','First Name');

   newType1.put('datatype','text');

   labelTypeMap.put('FirstName',newType1);

   Map<String, String> newType2 = new Map<String, String> ();

   newType2.put('label','Last Name');

   newType2.put('datatype','text');

   labelTypeMap.put('LastName',newType2);

   Map<String, Object> valueMap = request.searchValueMap;

   valueMap.put('FirstName',null);

   valueMap.put('LastName',null);

   System.debug(' LookupRequest is '+request);

   output.put('lookupRequest', request);


4. Construct the vlocity_ins.LookupResult interface (see example code below).

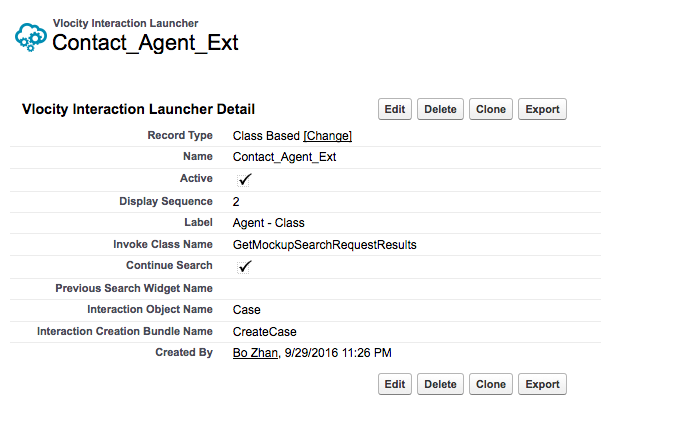

5. Create a Vlocity Interaction Launcher record.
6. Pick Class Based for the entry field Record Type:

7. Complete any pending information.
8. Insert the class created from step 1 (GetMockupSearchRequestResults) into the entry field Invoke Class Name.
9. Launch the class-based interaction.

   vlocity_ins.LookupResult Interface Example Code:

   List < String > contextIds = (List < String > ) inputs.get('contextIds');
   String parentId = (String) inputs.get('parentId');
   vlocity_ins.LookupRequest request =
    (vlocity_ins.LookupRequest) inputs.get('lookupRequest');
   String lastRecordId = request.lastRecordId; // R15 pagination support

   Map < String, Object > resultInfo = (Map < String, Object > ) inputs.get('resultInfo');
   Integer pageSize = 0; // R15 pagination support

   Integer numRecords = 30; // R15 pagination support

   // R15 pagination support

   // get ClassBasedResultsPageSize from customSetting

   // R15 pagination support

   vlocity_ins__InteractionLauncherConfiguration__c myCS =
    vlocity_ins__InteractionLauncherConfiguration__c.getInstance('ClassBasedResultsPageSize');
   if ((myCS != null) && (myCS.vlocity_ins__IsFeatureOn__c)) {

    pageSize =
     String.isNotBlank(myCS.vlocity_ins__DisplayMessage__c) ?
     Integer.valueOf(myCS.vlocity_ins__DisplayMessage__c) : 10;
   }
   Boolean hasMore = false;
   // End R15 pagination support

   List < String > resultFieldList = new List < String > ();
   resultFieldList.add('RelatedParty');
   resultFieldList.add('Role');
   List < String > verificationFieldList = new List < String > ();
   verificationFieldList.add('PartyName');
   verificationFieldList.add('Address');
   List < String > optionalVerificationFieldList = new List < String > ();
   optionalVerificationFieldList.add('Role');
   optionalVerificationFieldList.add('RelatedParty');
   Map < String, Map < String, String >> resultFieldsLabelTypeMap =
    new Map < String, Map < String, String >> ();
   Map < String, String > newType1 = new Map < String, String > ();
   newType1.put('label', 'Related Party');
   newType1.put('datatype', 'text');
   resultFieldsLabelTypeMap.put('RelatedParty', newType1);
   Map < String, String > newType2 = new Map < String, String > ();
   newType2.put('label', 'Role');
   newType2.put('datatype', 'text');
   resultFieldsLabelTypeMap.put('Role', newType2);
   Map < String, String > newType3 = new Map < String, String > ();
   newType3.put('label', 'Name');
   newType3.put('datatype', 'text');
   resultFieldsLabelTypeMap.put('PartyName', newType3);
   Map < String, String > newType4 = new Map < String, String > ();
   newType4.put('label', 'Address');
   newType4.put('datatype', 'text');
   resultFieldsLabelTypeMap.put('Address', newType4);
   Map < String, Object > verificationResult = new Map < String, Object > ();
   String uniqueRequestName = (String) resultInfo.get('uniqueRequestName');
   String drBundleName = (String) resultInfo.get('drBundleName');
   String interactionObjName = (String) resultInfo.get('interactionObjName');
   List < vlocity_ins.LookupResult > results = new List < vlocity_ins.LookupResult > ();
   if ((contextIds != null) && (contextIds.size() == 1) {

     Map < String, Object > resultValueMap =
      new Map < String, Object > ();
     resultValueMap.put('RelatedParty', 'John Smith');
     resultValueMap.put('Role', 'Carrier');
     resultValueMap.put('PartyName', 'John Smith');
     resultValueMap.put('Address', '50 Fremont, San Francisco, CA');
     String recordId = 'ExternalId';
     vlocity_ins.LookupResult result =
      new vlocity_ins.LookupResul(resultFieldsLabelTypeMap, resultFieldList,
       resultValueMap, recordId, uniqueRequestName, request, verificationResult,
       verificationFieldList, drBundleName, interactionObjName);
     result.setOptionalVerificationFieldList(optionalVerificationFieldList);
     // R15 optional verification fields support

     results.add(result);
    }
    // R15 pagination support

    else {

     for (Integer k = 0; k < numRecords; k++) {

      Map < String, Object > resultValueMap = new Map < String, Object > ();
      resultValueMap.put('RelatedParty', 'John Smith' + String.valueOf(k));
      resultValueMap.put('Role', 'Carrier');
      resultValueMap.put('PartyName', 'John Smith' + String.valueOf(k));
      resultValueMap.put('Address', '50 Fremont, San Francisco, CA');
      String recordId = 'ExternalId' + String.valueOf(k);
      vlocity_ins.LookupResult result =
       new vlocity_ins.LookupResult(resultFieldsLabelTypeMap, resultFieldList,
        resultValueMap, recordId, uniqueRequestName, request,
        verificationResult, verificationFieldList, drBundleName, interactionObjName);
      result.setOptionalVerificationFieldList(optionalVerificationFieldList);
      results.add(result);
     }
    }
    if ((pageSize > 0) && (results.size() > pageSize)) {

     List < vlocity_ins.LookupResult > resultSubSet =
      new List < vlocity_ins.LookupResult > ();
     // results.sort();

     Integer startIndex = 0;
     if (String.isNotBlank(lastRecordId)) {

      for (Integer i = 0; i < results.size(); i++) {

       if (results[i].recordId == lastRecordId) {

        startIndex = i + 1;
       }
      }
     }
     Integer j = 0;
     for (j = startIndex;
      (j < results.size()) && (j < startIndex + pageSize); j++) {

      resultSubset.add(results[j]);
     }
     if (j < results.size()) {

      hasMore = true;
     }
     output.put('lookupResults', resultSubset);
     if (hasMore) {

      output.put('hasMore', hasMore);
     }
     // End R15 pagination support

    }
    else {

     // Logger.db('GetExternalSearchRequestResults

     // LookupResult is

     // '+JSON.serializePretty(results));

     output.put('lookupResults', results);
    }
