Use the Procedure Plan Framework

Turn on Procedure Plan Orchestration for Pricing

1. From Setup, in the Quick Find box, enter Revenue Settings, then select Revenue Settings.
2. Find and enable Procedure Plan Orchestration for Pricing.
3. Find and enable Exclude Default and Sales Transaction Type Pricing Procedures.

Create a Commercial Product

1. From the App Launcher, find and select Products.
2. Create a commercial product called Delhi - New York.
   To learn how to create a product, see Create Simple Products and ensure that the Product Record Type is set as Commercial.
3. Add your product to the catalog and create a price book entry for it.
4. From Setup, in the Quick Find box, search for and select Salesforce Pricing Setup.
5. In the Sync Pricing Data section, click Sync.

Build Your Pricing Procedure

1. Create a pricing procedure and name it Flight Booking Pricing Procedure.
   To create a pricing procedure, follow the first 5 steps in Configure Your Pricing Procedure.
2. Create constants. These constants will serve as placeholders for fixed values in your pricing procedure.

   Constant Name	Data Type	Default Value
   AdjType	TEXT	Percentage
   AdjValue	NUMBER	5
   Override	TEXT	Override
   ConvFeeAdjType	TEXT	Amount
   ConvFeeAdjValue	NUMBER	-250

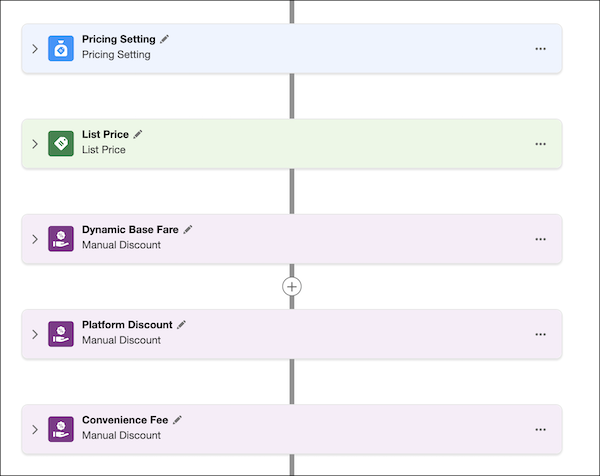

3. Add the following elements.
   1. Pricing Setting
   2. List Price. Use the Price Book Entries V2 decision table.
   3. Manual Discounts. You’ll need to add three manual discount elements.
4. The first Manual Discount element is added to calculate the dynamic base fare of the flight. Map these variables.
   • Input Variables
     • Adjustment Type: Override
     • Adjustment Value: PartnerUnitPrice
     • Quantity: LineItemQuantity
     • Input Unit Price: ListPrice
   • Output Variable
     • Net Unit Price: NetUnitPrice
5. The second Manual Discount element is added to calculate the platform discount for the flight booking. Map these variables.
   • Input Variables
     • Adjustment Type: AdjType
     • Adjustment Value: AdjValue
     • Quantity: LineItemQuantity
     • Input Unit Price: PartnerUnitPrice
   • Output Variable
     • Net Unit Price: NetUnitPrice
6. And the last Manual Discount element is added to calculate the convenience fee to charge your customer for the flight booking.
   • Input Variables
     • Adjustment Type: ConvFeeAdjType
     • Adjustment Value: ConvFeeAdjValue
     • Quantity: LineItemQuantity
     • Input Unit Price: NetUnitPrice
   • Output Variable
     • Net Unit Price: NetUnitPrice
7. Set your preferences to view pricing information, profile access, and rank information.
8. Save your procedure.
9. Activate your procedure.

Define Classes for Apex Hooks

1. From Setup, in the Quick Find box, enter Apex, then select Apex Classes.
2. Click New.
3. The first Apex class is a prehook that fetches all Sales Transaction Items from the Pricing context and overrides their PartnerUnitPrice tag with a dynamic random base fare between 990 and 1200 before pricing execution from an external database.

   public class DynamicFlightBasePriceApex implements RevSignaling.SignalingApexProcessor {

       public RevSignaling.TransactionResponse execute(RevSignaling.TransactionRequest request) {
           System.debug('Executing PREHOOK');
           String contextId = request.ctxInstanceId;
           Context.IndustriesContext industriesContext = new Context.IndustriesContext();

           //Query SalesTransactionItem nodes
           Map<String, Object> inputQueryItem = new Map<String, Object>{
               'contextId' => contextId,
                   'tags' => new List<String>{ 'SalesTransactionItem' }
           };
           Map<String, Object> itemQueryOutput = industriesContext.queryTags(inputQueryItem);
           Map<String, Object> itemQueryResult = (Map<String, Object>)itemQueryOutput.get('queryResult');
           List<Object> itemData = (List<Object>) itemQueryResult.get('SalesTransactionItem');
           System.debug('QLI itemData=' + itemData);

           // Generate random price between 990 and 1200
           Decimal minPrice = 990;
           Decimal maxPrice = 1200;
           Decimal range = maxPrice - minPrice;

           // Use Crypto.getRandomInteger() to generate a secure random number
           Integer randomInt = Math.abs(Crypto.getRandomInteger());
           Decimal randomPrice = minPrice + Math.mod(randomInt, range.intValue() + 1);

           System.debug('Generated Random Price: ' + randomPrice);

           // STEP 3 - Build update list
           List<Map<String, Object>> itemNodeUpdates = new List<Map<String, Object>>();
           for (Object itemObj : itemData) {
               Map<String, Object> itemNode = (Map<String, Object>) itemObj;
               List<Object> dataPath = (List<Object>) itemNode.get('dataPath');
               System.debug('Full item dataPath: ' + JSON.serialize(dataPath));
   			dataPath.remove(0); // Remove contextId
   			itemNodeUpdates.add(new Map<String, Object>{
                   'nodePath' => new Map<String, Object>{ 'dataPath' => dataPath },
                   'attributes' => new List<Object>{
                       new Map<String, Object>{
                           'attributeName' => 'PartnerUnitPrice',
                           'attributeValue' => randomPrice
                      }
                   }
               });
           }

           // STEP 4 - Submit context update
           if (!itemNodeUpdates.isEmpty()) {
               Map<String, Object> updateInput = new Map<String, Object>{
                   'contextId' => contextId,
                   'nodePathAndAttributes' => itemNodeUpdates
               };
               System.debug('--- PREHOOK: SUBMITTING CONTEXT UPDATE ---');
               System.debug(JSON.serializePretty(updateInput));
               industriesContext.updateContextAttributes(updateInput);
           }

           // Return the response
           RevSignaling.TransactionResponse response = new RevSignaling.TransactionResponse();
           response.status = RevSignaling.TransactionStatus.SUCCESS;
           response.message = 'Apex executed successfully with Random Price: ' + randomPrice;
           return response;
       }
   }


4. Create another Apex Class.
   This Apex class is a posthook that fetches the NetUnitPrice tag after pricing and converts it to the local currency, INR (Indian Rupees) using a simulated dynamic conversion rate between 85–86. It then updates the Sales Transaction Item description with the new INR fare, providing localized pricing visibility for Indian customers.

   public class ConvertFareToINRApex implements RevSignaling.SignalingApexProcessor {

       public RevSignaling.TransactionResponse execute(RevSignaling.TransactionRequest request) {
           System.debug('Executing POSTHOOK');
           String contextId = request.ctxInstanceId;
           Context.IndustriesContext industriesContext = new Context.IndustriesContext();

           //Query SalesTransactionItem nodes
           Map<String, Object> inputQueryItem = new Map<String, Object>{
               'contextId' => contextId,
                   'tags' => new List<String>{ 'SalesTransactionItem' }
           };
           Map<String, Object> itemQueryOutput = industriesContext.queryTags(inputQueryItem);
           Map<String, Object> itemQueryResult = (Map<String, Object>)itemQueryOutput.get('queryResult');
           List<Object> itemData = (List<Object>) itemQueryResult.get('SalesTransactionItem');
           System.debug('QLI itemData=' + itemData);

           //Query NetUnitPrice nodes
           Map<String, Object> inputQueryItem2 = new Map<String, Object>{
               'contextId' => contextId,
                   'tags' => new List<String>{ 'NetUnitPrice' }
           };
           Map<String, Object> itemQueryOutput2 = industriesContext.queryTags(inputQueryItem2);
           Map<String, Object> itemQueryResult2 = (Map<String, Object>)itemQueryOutput2.get('queryResult');
           List<Object> itemData2 = (List<Object>) itemQueryResult2.get('NetUnitPrice');
           System.debug('NetUnitPrice itemData=' + itemData2);
           Map<String, Object> netUnitTagData = (Map<String, Object>) itemData2.get(0);
           Decimal netUnitPrice = (Decimal) netUnitTagData.get('tagValue');
           netUnitPrice = netUnitPrice.setScale(2);
           System.debug('NetUnitPrice Tag Value=' + netUnitPrice);

           // Generate random price between 85.00 and 86.00 with decimals
           Decimal minPrice = 85.00;
           Decimal maxPrice = 86.00;
           Decimal range = maxPrice - minPrice;
           Integer randomInt = Math.abs(Crypto.getRandomInteger());
           Integer randomDecimalInt = Math.mod(randomInt, 100);
           Decimal randomFraction = Decimal.valueOf(randomDecimalInt) / 100;
           Decimal usdToInrRate = minPrice + randomFraction;
           if (usdToInrRate > maxPrice) {
               usdToInrRate = maxPrice;
           }

           // Calculate NetUnitPrice in INR
           Decimal fareInInr = (netUnitPrice * usdToInrRate).setScale(2);

           String fareMessage = 'The Flight fare in INR is: ' + fareInInr +
                        ' (USD ' + netUnitPrice +
                        ' at rate ' + usdToInrRate + ')';
           System.debug(fareMessage);

           // STEP 3 - Build update list
           List<Map<String, Object>> itemNodeUpdates = new List<Map<String, Object>>();
           for (Object itemObj : itemData) {
               Map<String, Object> itemNode = (Map<String, Object>) itemObj;
               List<Object> dataPath = (List<Object>) itemNode.get('dataPath');
               System.debug('Full item dataPath: ' + JSON.serialize(dataPath));
   			dataPath.remove(0); // Remove contextId
   			itemNodeUpdates.add(new Map<String, Object>{
                   'nodePath' => new Map<String, Object>{ 'dataPath' => dataPath },
                   'attributes' => new List<Object>{
                       new Map<String, Object>{
                           'attributeName' => 'SalesTrxnItemDescription',
                           'attributeValue' => fareMessage
                      }
                   }
               });
           }


           // STEP 4 - Submit context update
           if (!itemNodeUpdates.isEmpty()) {
               Map<String, Object> updateInput = new Map<String, Object>{
                   'contextId' => contextId,
                   'nodePathAndAttributes' => itemNodeUpdates
               };
               System.debug('--- PREHOOK: SUBMITTING CONTEXT UPDATE ---');
               System.debug(JSON.serializePretty(updateInput));
               industriesContext.updateContextAttributes(updateInput);
           }

           // Return the response
           RevSignaling.TransactionResponse response = new RevSignaling.TransactionResponse();
           response.status = RevSignaling.TransactionStatus.SUCCESS;
           response.message = 'Apex executed successfully with Price in INR: ' + fareInInr;
           return response;
       }
   }


Configure a Custom Procedure Plan Definition

1. From Setup, in the Quick Find box, search for and select Procedure Plan Definitions.
2. Click New
3. Specify these details.
   1. Title: Flight Booking Procedure Plan.
      Press Tab to autopopulate the Developer Name.
   2. Process Type: Revenue Cloud.
   3. Primary Object: Quote.
   4. Context Definition: <Context Definition Name>.
      You’ll need to choose a context definition that’s been designed for your use case. However, ensure that this is the same context definition you used when you built your pricing procedure.
   5. Save your changes.
4. Open the newly created procedure plan definition record.
5. To add the procedures that you want in the Procedure Plan Sections, select Add.
6. Add the first section to get the dynamic base price of our flight. Specify these details.
   1. Type: Standard.
   2. Name: DynamicBasePriceApex.
   3. Section Type: Apex.
   4. Once the section is added, click and specify these details.
      1. Phases: Pricing
      2. Resolution Type: Default
      3. Apex: DynamicFlightBasePriceApex

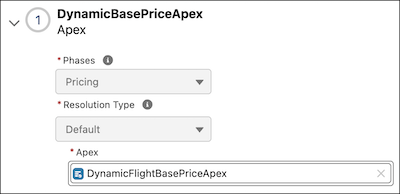

      It should look something like this:

7. Similarly, add another section to perform the pricing calculation and override the base price with the price we generated using the Apex prehook. Specify these values.
   1. Type: Standard.
   2. Name: FlightPriceCalculation.
   3. Section Type: Pricing Procedure .
   4. Click and specify these details.
      1. Phases: Pricing
      2. Resolution Type: Default
      3. Procedure: Flight_Booking_Pricing_Procedure
8. Finally, add a section to convert the price from USD to INR (US Dollar to Indian Rupee) by adding this Apex posthook for users whose Billing Country is set to India
   1. Type: Standard.
   2. Name: ConvertFareToINR.
   3. Section Type: Apex.
   4. Click and specify these details.
      1. Phases: Pricing
      2. Resolution Type: Rule-Based
      3. Condition Requirements: All Conditions Are Met (AND)
      4. Resource: Bill To Country
      5. Operator: Equals
      6. Output Value: India
      7. Apex: ConvertFareToINRApex
9. Save and then, activate your procedure plan definition.

Verify Your Procedure Plan Execution

To verify if the procedure plan is executed in the order we set and the pricing is accurate, we’ll need to create a quote.

1. Create a quote.
   In the Bill To Country field, enter India.
2. Save your changes.
3. Click Browse Catalogs and add the Delhi - New York product to the quote.

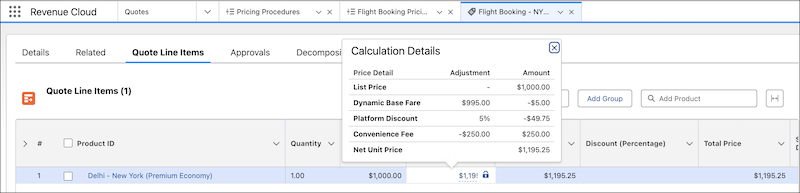

4. Hover on the Net Unit Price value to see the price waterfall details.
   You’ll see the application of your procedure plan and the discounts and additions that you configured in your pricing procedure.

5. To view the converted rate for your quote line item, click in the quote line item row, and select View.

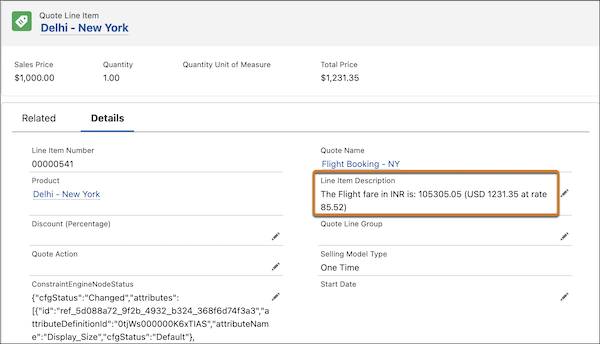

6. The Line Item Description shows the localized price for your flight.
