clmOsDocxGenerateDocument Lightning Web Component

It contains the following components:

• clmShowtoast
• clmOsDocxGenerateWordDocument
• clmPdfConverter

To include this LWC in any Omniscript, use the Custom LWC element and then generate and attach a Microsoft Word document directly to the parent object.

Important

The clmOsDocxGenerateDocument LWC supports only Microsoft Word DOCX templates.

Component LifeCycle for clmOsDocxGenerateDocument

You can play the video that demonstrates how the CLM LWCs work together. This is only a sample of how you can configure the CLM LWCs. You can configure them in other ways; for example, you can configure the clmpdfconversiondone event to be listened to by any LWC in any order.

• The clmOsDocxGenerateDocument LWC invokes the clmDocxGenerateWordDocument LWC for Microsoft Word document generation.
• The clmDocxGenerateWordDocument LWC invokes the clmDocxPreviewDocument LWC to load the Microsoft Word document.

  At the same time, the clmDocxGenerateWordDocument LWC triggers the clmPdfConverter LWC if a PDF attachment or PDF download is required.

• The clmPdfConverter LWC fires the clmpdfconversiondone event as soon as the PDF content is available.
• The clmShowThumbnail LWC and the clmDocumentPreviewer LWC listens to the clmpdfconversiondone event, and enable the Download Word or Download PDF button.

Data Handling for clmOsDocxGenerateDocument

The clmOsDocxGenerateDocument.html file does the following:

• Invokes clmOsDocxGenerateWordDocument component for generating a Microsoft Word Document and handling the preview of the document
• Invokes clmPdfConverter LWC for generating the PDF document and firing the event for generating the PDF document.

The clmOsDocxGenerateDocument.js file takes the following input parameters:

"selectedTemplate": {
    "Name": "__NewTemplate",
    "Id": "a0Xf4000009I0chEAC",
    "VersionNumber": 1,
    "TemplateType": "Microsoft Word .DOCX Template"
  }

Important

You must use kebab case in the Omniscript for property names in order to map to the corresponding global variable in the LWC.

For example, in the Omniscript, you use selected-template to map to the LWC selectedTemplate global variable.

This component parses through the Omniscript data JSON to extract attachFileFormat and downloadFileFormat.

• Based on attachFileFormat values, the document (Word, PDF, or both) will be attached.
• Based on DownloadFileFormat values, the Download button for the document will be displayed or not.

Event Handlers for clmOsDocxGenerateDocument

After a Microsoft Word document is generated, an event name clmdocgencomplete is triggered for other LWCs.

After a PDF document is generated, an event name clmpdfconversiondone is triggered for other LWCs.

With the Omniscript, you can listen to the flag isWordAttachDone, which controls dependent elements. The event data is saved to the Omniscript data JSON.

example

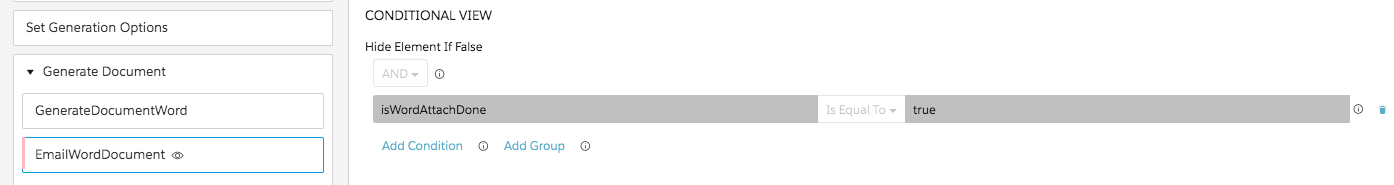

Using isWordAttachDone Example

To show the Email Document button only after the document is generated, you can add a filter in the Omniscript with isWordAttachDone = true.

With the Omniscript, you can listen to the flag isPDFAttachDone, which controls dependent elements.

The event details JSON format is saved to the Omniscript data JSON.

example

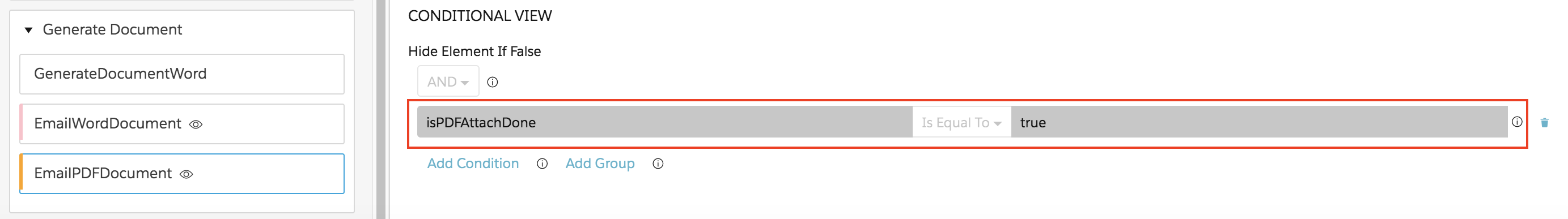

Using isPDFAttachDone Example

To show the Email PDF Document button only after the document is generated, you can add a filter in the Omniscript with isPDFAttachDone = true.

Event Details JSON Format for clmOsDocxGenerateDocument

clmdocgencomplete The event data for the Microsoft Word document has the following keys.

clmpdfconversiondone The event data for the PDF document has the following keys.

Files Included for clmOsDocxGenerateDocument

clmOsDocxGenerateDocument includes the following files:

• clmOsDocxGenerateDocument.html
• clmOsDocxGenerateDocument.js
• clmOsDocxGenerateDocument.js-meta.xml

Other Vlocity and Salesforce Lightning Web Components Included for clmOsDocxGenerateDocument

The clmOsDocxGenerateDocument LWC extends the Salesforce LightningElement component.

Vlocity Lightning Web components included:

• toast
• pubsub
• OmniscriptBaseMixin

Salesforce Lightning Web components included:

• spinner
• api
• track
• LightningElement

Used in Other Vlocity CLM Lightning Web Components for clmOsDocxGenerateDocument

None. This is a top-level component.
