Using and Validating Asset Tokens

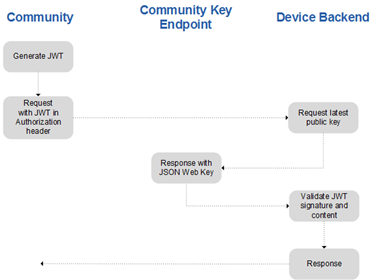

Here’s an example of bearer token exchange for an Experience Cloud site.

POST /ingestapi HTTP/1.1
Host: api.devicebackend.com
Content-Type: application/json
Authorization: Bearer
eyJraWQiOiJBc3NldHMiLCJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJhdWQiOlsiaHR0cDovL2xvY2F saG9zdDo1MDAwIl0sIm5iZiI6MTQ1MjQ5MTc4OSwiaXNzIjoiaHR0cHM6Ly9hc3NldGlkLWRldmVsb3Blci1 lZGl0aW9uLm5hMS1ibGl0ejAzLnNvbWEuZm9yY2UuY29tIiwiY25mIjp7Imp3ayI6eyJrdHkiOiJSU0EiLCJ lIjoiQVFBQiIsImtpZCI6ImRldmljZWtleSIsIm4iOiJqY3YxZndyQnFZa2NzeFBTSjR2cG03Yjc4cXZpTjl 3OXVieF9sUUhV0lEWDdOYUt2UGxQNmxGUDF3MHJZci0xelN1c0JGakxLeGhrVmJsSGRER3ZldDN4NUJmZ1p3 NXducmt3N1ZqYjZyeWNMNWhGOVBuOXU2Rndla3NXN0l4YnBqRVZQbEltT1I4Mkg0LXdOV053dzFCZ2xrVlJF OTdsUFVMQlc0WlRwbkZiTW84a2owVVE0S2d2Ri13UnN1dmcwOVhaa1FPdnF4dFdHQ0pJUzJZSHoxUEw1cEll TXFwMFlwSkxWZ3g1QXZHTDVHNXl0bVprX3JfZnl1QXJ4TGstdWZXNE1qSkw2Rmo4dzFLYnZ6YXhlMWlDbGQ tdXRsd2JUWmtfN0daSUtsbVR4d1JGZkJqVWM4VzRsbFJoMDdFUXI0cThpNHVYeEJaQ3pEWjcyQWxXWHcifX0 sImlkIjoiMDViRDAwMDAwMDAwMDU2IiwiZXhwIjoxNDUzMDEwMTc1LCJhaWQiOiIwMmlEMDAwMDAwMTZHTVI iLCJkaWQiOiI2YWM5YmMyMi0yYTQxLWI4NWEtYWY3Ni1jMTJlOWUzYmY4YmMifQ.LhGF8nkJVd3soE 7UjLujjTVIjMzbzwicWpJ6tLlFScX7Yc45nzv1ccDB2UHHj2R5aEZT4K8gfLAD8AHWHErhwVmHLkTeqtXok8 a-S1dg QW_7-STybWl3Bf2xHXomm9ZdvL406UaZMOdCNrNDSqAZn0kgupo3orzkCC3YLCes1nc4iFIMKXbWCeRiEkGo Przx09PnJqUA9nz74nyKo3-NhpZvy6o-qxAryeibUeOfrtG8wvbnjjbNEDukS-GU0rZTcW9KABboCT 13DLFM 5caFofNgcKE3W67zlJIcSAEgOSVNVoiFYwSlTvWiyxMIMabEOd8usAfwnIKk1XUYnuNG0w

{"some": "data"}

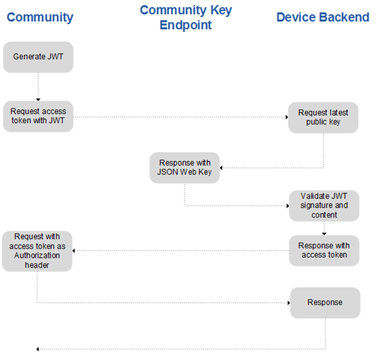

In this example, you first request an access token:

POST /oauth2/token HTTP/1.1
Host: login.devicebackend.com
Content-Type: application/x-w w-form-urlencoded
grant_type=urn%3Aietf%3Aparams%3Aoauth%3Agrant-type%3Atoken-exchange&subject_
grant_type=urn%3Aietf%3Aparams%3Aoauth%3Agrant-type%3Ajwt-bearer&assertion=ey
JraWQiOiIxOTgiLCJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJhdF9oYXNoIjoiT1c2ajJfNF
pqcmU4cGFkREpYdEZEQSIsInN1YiI6Imh0dHBzOi8vbG9naW4uc2FsZXNmb3JjZS5jb20vaWQvMDB
EMzAwMDAwMDAwbWx4RUFBBLzAwNTMwMDAwMDAwZ0tWOEFBTSIsImF1ZCI6IjNVkc5OU94VHlFTUNR
M2dYdVgzMWx5c1gzUlFQNC5WajNFVnpsTXNWYnhGdlVlN1ZqWjBXY2pXdkdsQVU3QlBKRlpCU3lCR
1BpR3lIaG9qWjJCRTMiLCJpc3MiOiJodHRwwczovL2xvZ2luLnNhbGVzZm9yY2UuY29tIiwiZXhwI
joxNDUxNTExNjU2LCJpYXQiOjE0NTE1MTE1MzZ9.ervvV9H89ODomiXekq0_6SVkgxZkQGaJ8nKXj
t3VSCB46e7YiHN3lDg9BXFfT8NdtipCHpHNQCAJ38R-II_txVb1U-QE598sNK5aHVGNkyzoQnPIsL
VPFDZrWCi1v4FDGBfxtckiGWw_bN1x_FYO0qnLwaD5Fdz7kNdi_Xujvsf63tdW-nfWUoyld6-htu5
eDI3cergGz3itaYyJHpPF7od11ff6O2cW9YUVXQaOF1vcOPK1R23QTlxkPm5rNT2NnWyEWEm_v4Fj
TbqItNK5hgRQO6DYG1xmCkC6V1AD7AVIRbTF99-9f_c5t9BDR1x1AMDo6JKcHAVCafngdQ1jRNlML
0CGT92GgQ6PGD7Ea5oy1zqu7gub1vYpFrI_3s2tVD_2nRIAgQuSVW5ckSxcX4Xh6Qukiu1woKkM5H1
6_Pm5iY4jexXKkQDWlfsCsANtFCopYfOuX1lkm5DqqTwDJL3sixh5eQKr5gtKAd8jzgcV5rfalNcKt
gozW2cGyVO7Co9jjWqchs6ZyOo7Z8mZgxyBkYOI-r73Nv6vplrHgvWe3azGEcgYSl_NN4E0GWu2Qnf
4i9kjvwGwRN_YwMYthArkxYgE8FBt2xrPOq3GV09w4H3mGXHOWjB_H_C7uUPTztbGNDqX4w7R7NMd3
dY5Cu1WYUB_W1AV_BhhAoUUoAoE

Here’s the returned access token:

HTTP/1.1 200 OK
Cache-Control: no-cache, no-store
Content-Type: application/json;charset=UTF-8
{
  "access_token": "AYDWAgEzUqeVsVtcA4ndY25qGFVyaId75im2glOV5Eoog2XajaEjdQlndD7RveqpL7G",
  "token_type": "Bearer"
}

Then use the access token to make service requests:

GET /resource HTTP/1.1
Host:  api.devicebackend.com
Authorization: Bearer AYDWAgEzUqeVsVtcA4ndY25qGFVyaId75im2glOV5Eoog2XajaEjdQlndD7RveqpL7G

HTTP/1.1 200 OK
Cache-Control: no-cache, no-store
Content-Type: application/json;charset=UTF-8

{"some": "data"}

Here’s an example in Java of how to verify an asset token using jose4j:

package your.company

import org.jose4j.jwk.Ht psJwks;
import org.jose4j.jwt.JwtClaims;
import org.jose4j.jwt.consumer.InvalidJwtException;
import org.jose4j.jwt.consumer.JwtConsumer;
import org.jose4j.jwt.consumer.JwtConsumerBuilder;
import org.jose4j.keys.resolvers.HttpsJwksVerificationKeyResolver;
import org.json.JSONObject;

import javax.servlet.ServletException;
import javax.servlet.ht p.HttpServlet;
import javax.servlet.ht p.HttpServletRequest;
import javax.servlet.ht p.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;

public class IngestAPIExample extends HttpServlet {

  private static final String ISSUER = "https://customersite.my.site.com";
  private static final String KEY_ENDPOINT = ISSUER + "/id/keys";
  private static final String AUDIENCE = "https://your.devicebackend.com";

  @Override
  protected void doPost(HttpServletRequest request, HttpServletResponse response)
  throws ServletException, IOException {
    boolean isValidAssetToken = false;
    // Get the asset token from the HTTP Authorization header, removing the "Bearer "
    String authHeader = request.getHeader("Authorization");
    String assetToken = authHeader.substring(7);

    // The HttpsJwksVerificationKeyResolver uses JWKs obtained from the HttpsJwks and
    // selects the most appropriate one to use for verification based on the Key ID and other factors
    // provided in the header of the JWS/JWT.
    HttpsJwks httpsJkws = new HttpsJwks(KEY_ENDPOINT);
    HttpsJwksVerificationKeyResolver httpsJwksKeyResolver = new
    HttpsJwksVerificationKeyResolver(httpsJkws);

    // The JwtConsumer establishes the rules for Validation of our asset token.
    JwtConsumer jwtConsumer = new JwtConsumerBuilder()
      .setVerificationKeyResolver(httpsJwksKeyResolver)
      .setRequireExpirationTime() // The JWT must have an expiration time.
      .setAllowedClockSkewInSeconds(30) // Allow some leeway in validating time-based claims to account for clock skew.
      .setExpectedIssuer(ISSUER) // Entity that the asset token must be issued by.
      .setExpectedAudience(AUDIENCE) // Entity that the asset token is intended for.
      .build(); // Create the JwtConsumer instance.
    try {
      // Validate the JWT and process it to the Claims.
      JwtClaims jwtClaims = jwtConsumer.processToClaims(assetToken);
      isValidAssetToken = true;
    } catch (InvalidJwtException e) {
        // InvalidJwtException thrown if the asset token failed processing or validation.
        System.out.println("Invalid Asset Token: " + e);
    }

    // If your asset token is valid, do something here with your data. For purposes of our example, we’re done.
    PrintWriter out = response.getWriter();
    JSONObject r = new JSONObject();
    r.put("valid", isValidAssetToken);
    out.close();
  }
}
