            Overlay Geographical Boundaries on the Map

            You are here:

            1. Salesforce Help
            2. Docs
            3. Sales Performance Management

            Overlay Geographical Boundaries on the Map

            Slice territories into the boundaries of your choice in Territory Planning. For example, add boundaries that help you work within specific counties, census tracts, or postal codes.

            Required Editions

            Available in: both Salesforce Classic (not available in all orgs) and Lightning Experience
            Available in: Professional, Enterprise, Performance, Unlimited, and Developer Editions with Web Services API enabled
            User Permissions Needed
            To modify alignments:

            Sales Planning Ops Analyst permission set

            AND

            Query for Datapipelines User for Sales Planning permission set

            AND

            SF Maps Territory Planning for Sales Planning permission set
            1. Open an alignment and set the focus.
            2. From the Layers tab, click Add Overlay, then select Boundary. Click Next.

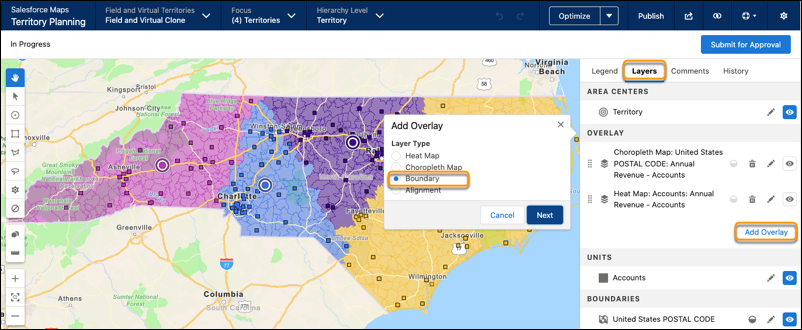

              Boundary option from the Layers tab
            3. Select the country that corresponds with the focus area, then select a type of boundary that you want to overlay on the map. For example, define your overlay to show county lines.

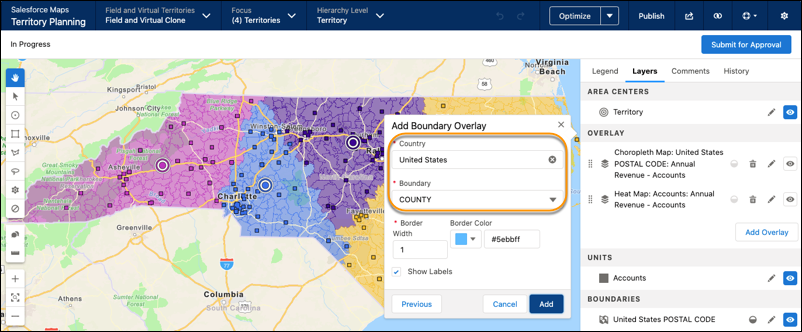

              Boundary overlay defined to show county lines on a United States map
            4. Select a border color, then click Add.

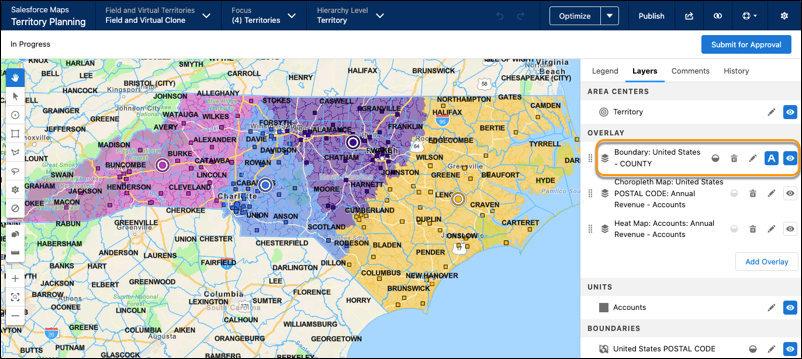

              Boundaries that appear on the map
              The boundary overlay appears on the map. Settings let you adjust opacity, as well as delete, edit, and hide the overlay.
