Use Cases for Custom Headers with Named Credentials

Because named credentials operate in the HTTP world, parameter provision is implemented as an HTTP request accompanied by headers that act as additional inputs required by the service you’re calling. HTTP requests have a header and a body, and inputs can appear in both. It’s also common for inputs to appear in a URL as a query string. All three approaches have pros and cons. We discuss only headers here.

Per-User Callouts

Many systems respond to HTTP requests differently based on which user or role makes the request. For example, sometimes an integration to a company returns a personal phone number but only if the person whose phone number it is makes that callout request. However, a calling user in the company’s HR department can see any user’s salary, though the HR role must be specified.

Here’s an example of a per-user callout that uses a custom header to identify the user by their email address.

GET https://example.com/getInfo?personId=my_username%40example.com/HTTP/1.1
X-Calling-User:my_username@example.com

As another example, Microsoft offers an enterprise-wide search service and returns different results based on the caller’s identity. Users don’t get results they’re not allowed to see. Salesforce named credentials support this service because admins can define headers such as X-Calling-User and substitute the value of the user making the callout, for example, {!$User.email}. The header is defined on an external credential.

Tip If you’re using a formula in a custom header in an external credential, and you choose Named Principal as your identity type, don’t use $User in the formula.

API Keys

API key refers to a programmatic password used in an HTTP request to identify a calling application attempting to access a given API. API keys have no strict standard, so anyone who builds an API can define their own headers, rules, and so on.

Here’s an example of a callout that uses an API key.

GET https://example.com/api/11a5aea0?count=20 HTTP/1.1
X-API-Key: abc123

X-API-Key is arbitrary, and some vendors use headers such as Client-ID. This example, for retrieving a random photograph, uses a mixture of Client-ID and the standard Authorization header.

GET https://example.com/photos/random_HTTP/1.1
Authorization: Client-ID abc123

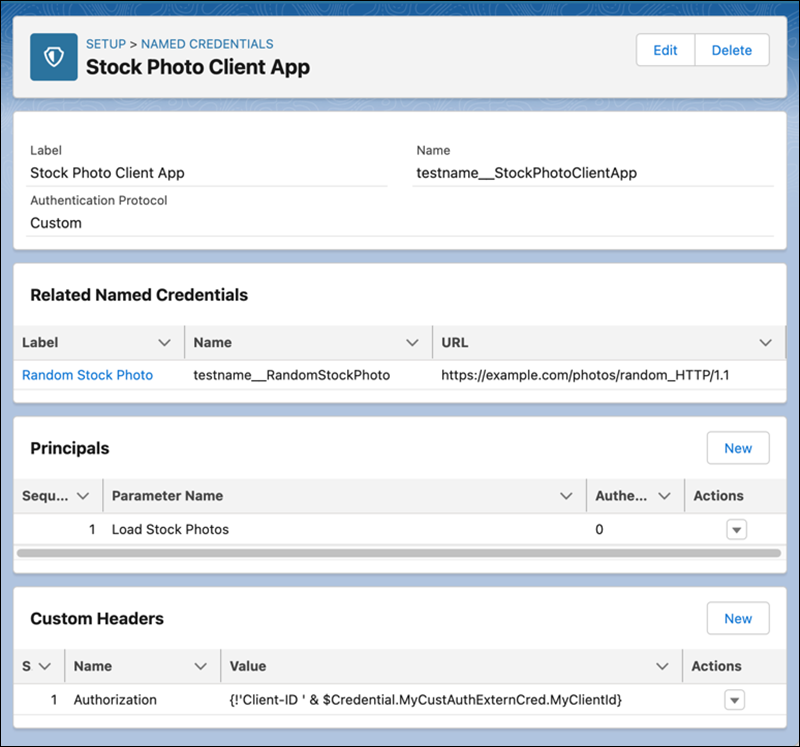

Here’s what an external credential that uses a custom header with an API key can look like.

• The credential uses a custom authorization protocol.
• It uses a Load Stock Photos principal.
• It’s linked to a Random Stock Photo named credential, which can have its own custom header.
• AccessKey is defined in the principal.

See Use API Keys in Custom Headers with Named Credentials.

Custom Headers in Named Credentials

Define custom headers at the level of a named credential if the headers are contextual to a single endpoint. An example of a header that works better on a named credential is a billing identifier. In all likelihood, this type of identifier has nothing to do with authentication or security, and it can be different for each endpoint.

GET https://example.com/method?abc=def HTTP/1.1
X-Billing-Code: costCenter123
