            Communicate from Omniscript to a Lightning Web Component (Managed Package)

            You are here:

            1. Salesforce Help
            2. Docs
            3. Omnistudio for Managed Packages

            Communicate from Omniscript to a Lightning Web Component (Managed Package)

            For the managed package runtime, send data from Omniscript Actions and Steps to other Lightning web components using the Pub/Sub property.

            Managed Package app icon This information is for Omnistudio for Managed Packages. For Omnistudio on standard runtime, see Omnistudio Help.

            Before you begin, review the documentation on using PubSub. See Communicate Between Components.

            The Pub/Sub property enables action elements and step elements to send data in key-value pairs to other Lightning web components. Lightning web components must register the Omniscript component's event name and add code to handle the data sent from the event.

            Beginning with Vlocity Insurance and Health Spring '20, the Step element supports the Pub/Sub property.

            1. In an Omniscript Action or Step, select the Messaging Framework and check Pub/Sub.
            2. In the key and value fields, configure which data to pass to another Lightning web component.

              1. For Key, enter a name to store the value.

              2. For Value, enter data to pass to the Lightning web component. The field accepts merge syntax.

                Action Example

                Step Example

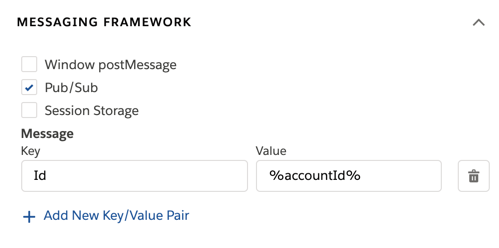

                Pass data from the action's response in the value field using merge syntax. For example, to pass the response node "accountId", enter %accountId% in the Value field.

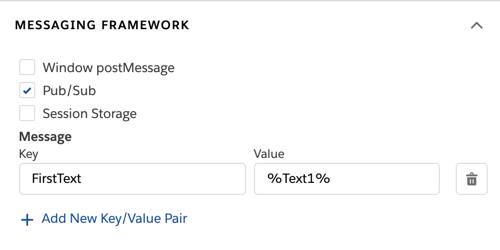

                Pass data from an element within the step using merge syntax. For example, to pass a Text element named Text1, enter %Text1% in the Value field.

            3. Activate the Omniscript.
            4. In an Lightning web component that receives data from the action or step, import the pubsub module. Using this example, replace ns with the namespace of your Vlocity package.
              import pubsub from 'ns/pubsub';
            5. In the Lightning web component, register the pubsub event using this code without replacing anything. The even must register after the component renders.

              Action pubsub Event

              Step pubsub Event


              pubsub.register('omniscript_action', {
    data: this.handleOmniAction.bind(this),
});

              pubsub.register('omniscript_step', {
    data: this.handleOmniStepLoadData.bind(this),
});
            6. In the Lightning web component, create a pubsub event handler.

              Action Event Handler Example

              Step Event Handler Example


              handleOmniAction(data) {
  // perform logic to handle the Action's response data
}

              handleOmniStepLoadData(data) {
  // perform logic to handle the pubsub data from the Step
}
            7. (Optional) If different actions or steps require different logic in the code, use a switch statement to determine how to handle the event. For information on switch statements, see switch.

              Action Example

              Step Example

              Access the action's Element Name using data.name.

              handleOmniAction(data) {
  switch(data.name) {
    case 'SomeNameForAction':
      this.handleSomeNameForAction(data);
      break;
    case 'SomeNameForAction2':
      this.handleSomeNameForAction2(data);
      break;
    default:
      // handle default case
  }
}

handleSomeNameForAction(data) {
    // perform some logic specific to SomeNameForAction action
    // that has element name = "SomeNameForAction"
}

handleSomeNameForAction2(data) {
    // perform some logic specific to SomeNameForAction2 action
    // that has element name = "SomeNameForAction2"
}

              Access the step's Element Name using data.name.

              handleOmniStepLoadData(data) {
  switch(data.name) {
    case 'FirstStep':
      this.handleOmniFirstStepLoadData(data);
      break;
    case 'SecondStep':
      this.handleOmniSecondStepLoadData(data);
      break;
    default:
      // handle default case
  }
}

handleOmniFirstStepLoadData(data) {
    // perform some logic specific when a Step element which name is
    // FirstStep is loaded
}

handleOmniSecondStepLoadData(data) {
    // perform some logic specific when a Step element which name is
    // SecondStep is loaded
}

              Access the action's Element Type using data.type.

              handleOmniAction(data) {
  switch(data.type) {
    case 'Integration Procedure Action':
      this.handleIPActionPubsubEvents(data);
      break;
    case 'Remote Action':
      this.handleRemoteActionPubsubEvents(data);
      break;
    default:
      // handle default case
  }
}

handleIPActionPubsubEvents(data) {
    // perform some logic specific to Integration Procedure Actions
}

handleRemoteActionPubsubEvents(data) {
    // perform some logic specific to Remote Actions
}
