            Aggregate Node: Hierarchical Aggregation

            You are here:

            1. Salesforce Help
            2. Docs
            3. Salesforce Data Pipelines

            Aggregate Node: Hierarchical Aggregation

            Use Hierarchical Aggregation in Salesforce Data Pipelines to sum measures across multilevel data. For example, you can roll up revenues, assets, or liabilities for companies and their subsidiaries. Or, you can roll salesperson data up the management chain to see aggregates by team, region, area, and beyond. Hierarchical Aggregation requires rows with an ID and a parent ID. Many rows can have the same parent ID, or the parent ID can be empty. Some rows can even share an ID, such as a record with multiple parents. You can also use the optional roll up percentage to apply percentage splits to allocate portions to different parents, such as commission among members of the sales team.

            Note
            Note

            If the data has duplicate rows with the same record ID and parent ID, you must clean the data. Run a standard aggregation before running the hierarchical aggregation.

            For the same record, the amount should be consistent for all parents.

            The Roll-up percentage should sum up <= 1.

            User Permissions Needed
            To manage and create a recipe: Edit CRM Analytics Dataflows OR Edit Dataset Recipes
            1. In a Data Prep recipe that already has at least one Input node, select the Add Node button (Add Node button) between two nodes or at the end of the recipe. To show the Add Node button between two nodes, hover the cursor on the connecting line.
            2. In the Add Node dialog box, select Aggregate.

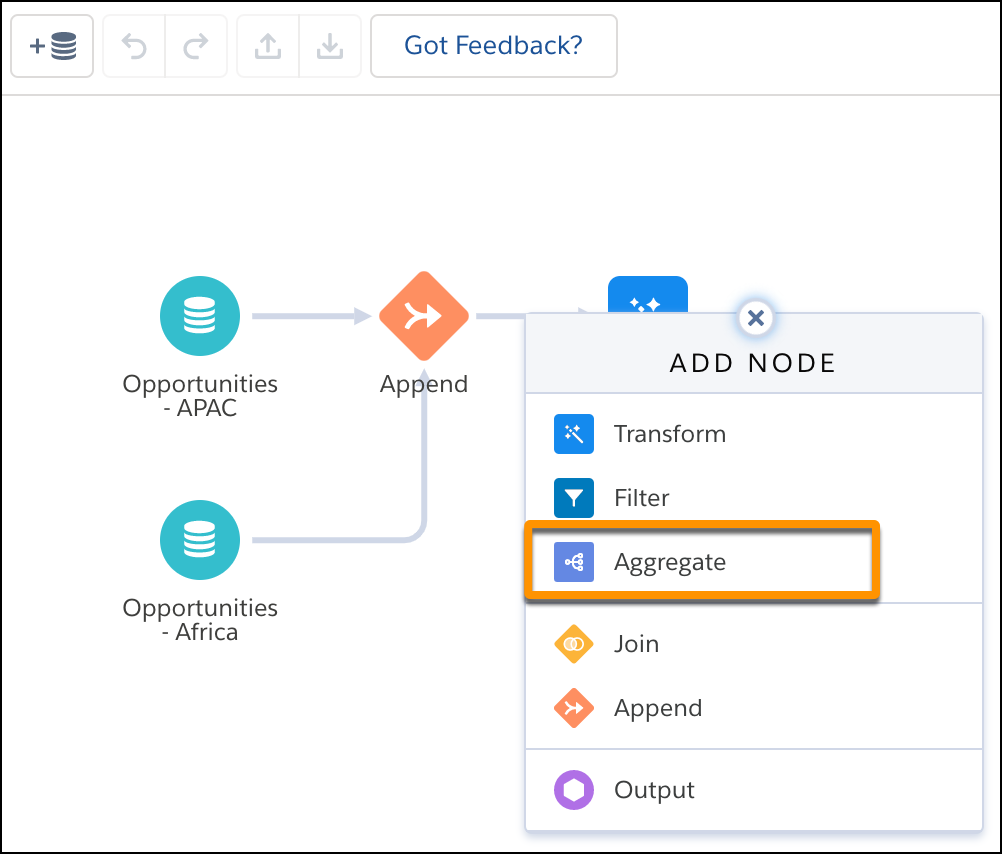

              The Add Node modal shows all possible nodes that you can add, including the Aggregate node.
            3. In the Aggregate settings panel, turn on Hierarchical Aggregation.

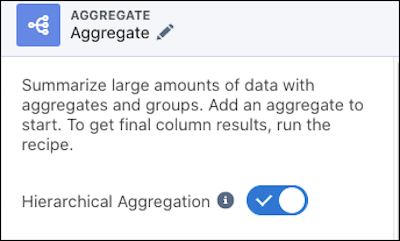

              Select Hierarchical Aggregation in the Aggregate node.

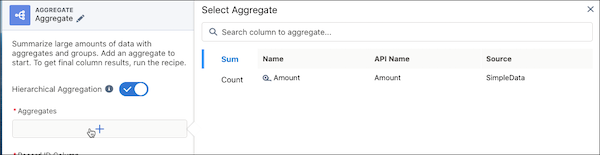

            4. Add at least one Aggregate, such as the sum of a measure or count of rows.
              The Add Node modal shows all possible nodes that you can add, including the Aggregate node.
            5. Select the Record ID Column. The record ID can be any dimension in the dataset that defines the row, such as salesperson or account name.

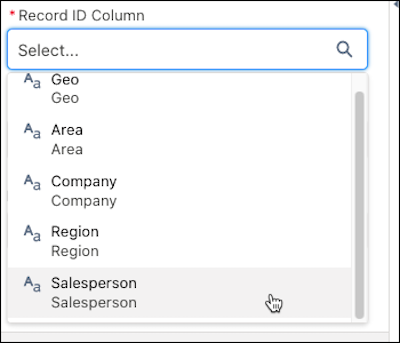

              Select a record ID column from the list of dimensions in the dataset.
            6. Specify the Parent ID Column. The parent ID identifies which record each row rolls up to. This can be any dimension in the dataset that has not been selected as the record ID, such as the manager or parent account. Not every record needs to have a parent, for instance if it’s at the top of a hierarchy.

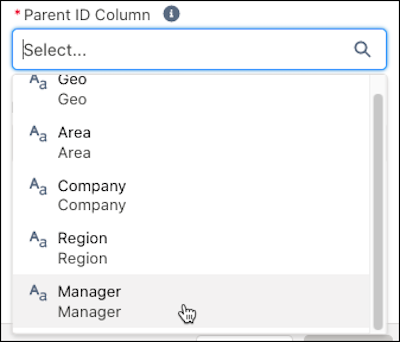

              Select a parent ID column from the list of dimensions in the dataset.
              Note
              Note Null values are accepted in the parent ID column.
            7. Optionally, select a Roll-Up Percentage Column to apply a percentage split. The aggregated value is multiplied by the number in this column. For example, your records have more than one parent, and you want to roll them up differently based on the parent.

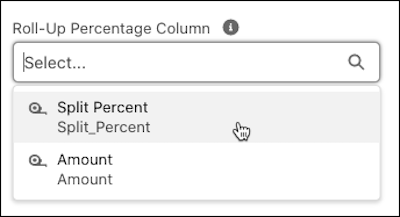

              Select a Roll-Up Percentage column from the list of measures in the dataset.
            8. To add the Hierarchical Aggregation to the recipe, click Apply.

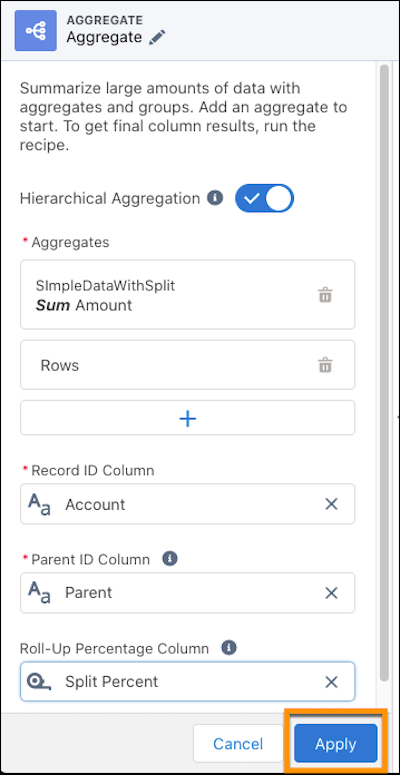

              Completed Hierarchical Aggregation setup, showing Apply button.
            9. Save the recipe.
            With hierarchical aggregation you can automatically sum values at each level of the relationship instead of calculating values manually.
            Note
            Note In the following examples, Amount is the aggregated column.

            Example 1: Simple hierarchy such as region and country.

            This example shows:

            • Multiple records with the same parent
            • Mix of records with and without a parent
            • A record outside of the hierarchy
            • Parent with individual value

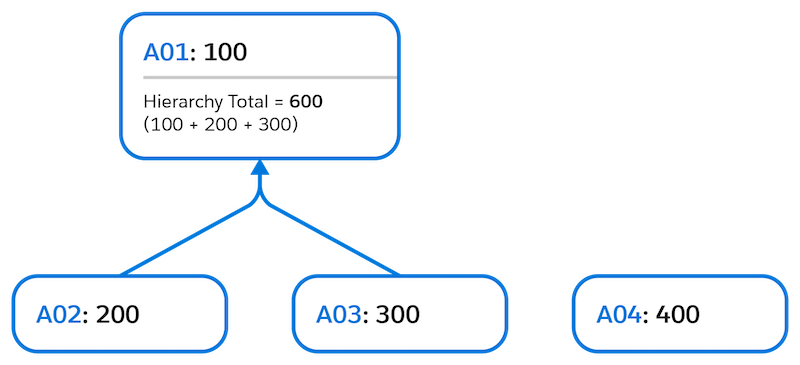

            Diagram showing hierarchy example one.
            Without Hierarchical Aggregation   With Hierarchical Aggregation
            Record ID Parent ID Amount   Record ID Amount
            A01   100 A01 600
            A02 A01 200 A02 200
            A03 A01 300 A03 300
            A04   400 A04 400

            Example 2 Intermediate hierarchy such as an org chart.

            This example shows:

            • Multiple records with the same parent
            • Mix of records with and without a parent
            • A record outside of the hierarchy
            • Parent with individual value
            • Parent without individual value
            • Multiple hierarchies

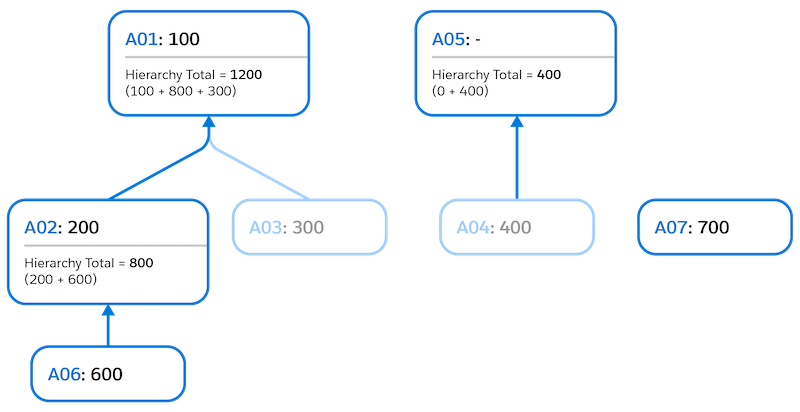

            Diagram showing hierarchy example two.
            Without Hierarchical Aggregation   With Hierarchical Aggregation
            Record ID Parent ID Amount   Record ID Amount
            A01   100 A01 1200
            A02 A01 200 A02 800
            A03 A01 300 A03 300
            A04 A05 400 A04 400
            A06 A02 600 A05 400
            A07   700 A06 600
                  A07 700

            Example 3 Complex hierarchy such as subsidiary ownership with split percentages.

            This example shows:

            • Multiple records with the same parent
            • Mix of records with and without a parent
            • A record outside of the hierarchy
            • Parent with individual value
            • Parent without individual value
            • Multiple hierarchies
            • Records with multiple parents
              Note
              Note A record has a row per each parent.
            • Roll-up percentage values (percentage splits)

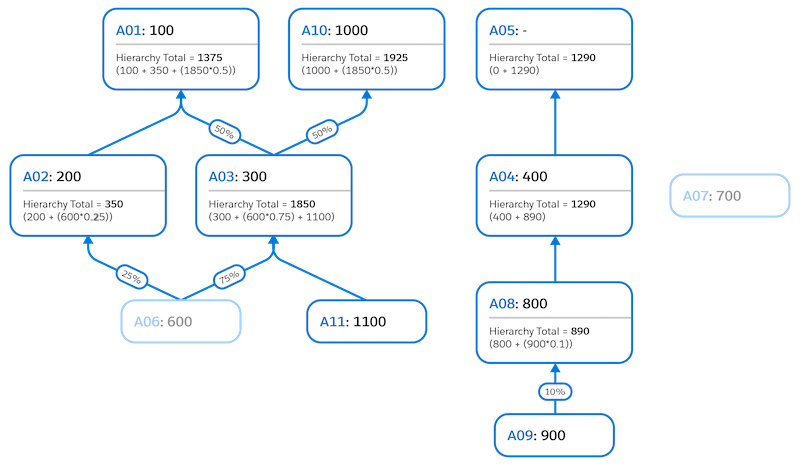

            Diagram showing hierarchy example three.
            Without Hierarchical Aggregation   With Hierarchical Aggregation
            Record ID Parent ID Amount Percentage   Record ID Amount
            A01   100   A01 1375
            A02 A01 200 1.00 A02 350
            A03 A01 300 0.50 A03 1850
            A03 A10 300 0.50 A04 1290
            A04 A05 400 1.00 A05 1290
            A06 A02 600 0.25 A06 600
            A06 A03 600 0.75 A07 700
            A07   700   A08 890
            A08 A04 800 1.00 A09 900
            A09 A08 900 0.10 A10 1925
            A10       A11 1100
            A11 A03   1.00
